2/14.Timing Cover (new design) and Distributor for the Ford FlatHead V8

0 downloads130 views0 likes

Download at source

Shared by

Alfred

Verified

Description

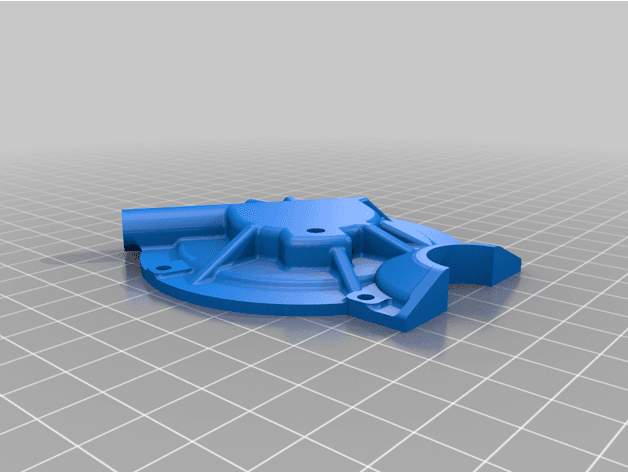

This is a new Timing Cover and the Distributor for the Ford FlatHead V8 (https://www.thingiverse.com/thing:2537602). This design is planned to receive a supercharger soon. The assembly of this part is meticulous; the components are quite fragile, especially the "TimingCoverDistributorTop". The livewires are provided for 3mm silicon electric wires. On my pictures, the TimingCover is mounted with screws; if it has to replace the original model it can be fitted with 4mmx2mm disk magnets. In addition to this package, are also published: - New Sparkplug because the original is too small (in my opinion) - Livewires for this Sparkplug # Release 14/03/2020: New files:. SparkPlugSeparator2.stl. SparkPlugSeparator3.stl. SparkPlugSeparator2x2.stl # Print Settings 1 x TimingCover: Layer:0.15mm Raft:no Brim:no Support:yes Infill:20% 1 x TimingCoverDistributor: Layer:0.15mm Raft:no Brim:no Support:no Infill:30% 8 x TimingCoverDistributorLiveWires: Layer:0.15mm Raft:no Brim:no Support:yes Infill:100% 1 x TimingCoverDistributorLiveWiresCover: Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x TimingCoverDistributorSensor: Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x TimingCoverDistributorSensorPlug: Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x TimingCoverDistributorTop: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x TimingCoverGasket: Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x TimingCoverJoin: Layer:0.15mm Raft:no Brim:no Support:yes Infill:100% # Accessories 1 x m2x3mm SHCS 1 x m2x10mm SHCS 4 x m2x15mm SHCS 2 x m2 lock washer 6 x m3 threaded insert 5 x m3 lock washer 9 x m3x12mm threaded rod 5 x m3x13mm threaded rod 1 x m3x45mm SHCS 5 x m3x8mm SHCS 1 x m4x5mm set screw # Mounting Look at pictures.
