Files (3)

Headlight_repair_2deg.stl

STL

5.9 MB

Headlight_repair_4deg.stl

STL

5.9 MB

Headlight_repair_6deg_lip.stl

STL

5.8 MB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

3 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Headlight_repair_2deg.stl	Printable file	5.9 MB STL	Slice file	Slice file	Slice file	Ensure proper adhesion by roughening the plastic surface
Headlight_repair_4deg.stl	Printable file	5.9 MB STL	Slice file	Slice file	Slice file	Ensure proper adhesion by roughening the plastic surface
Headlight_repair_6deg_lip.stl	Printable file	5.8 MB STL	Slice file	Slice file	Slice file	Ensure proper adhesion by roughening the plastic surface

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Light Covers

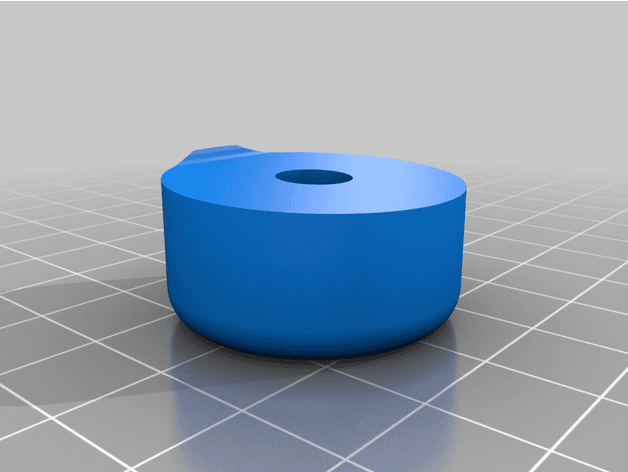

Aston Headlight Repair Block

0 downloads25 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

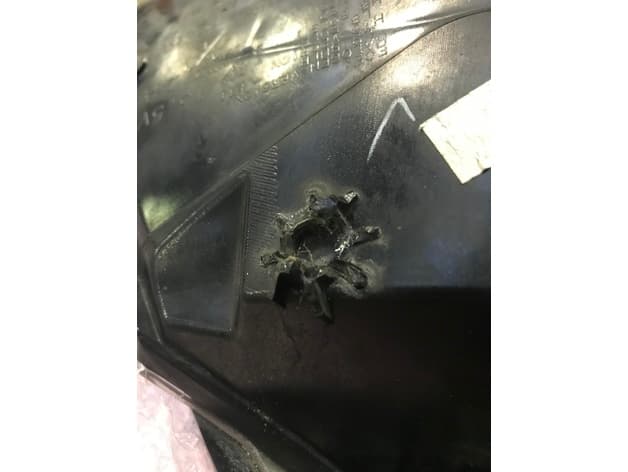

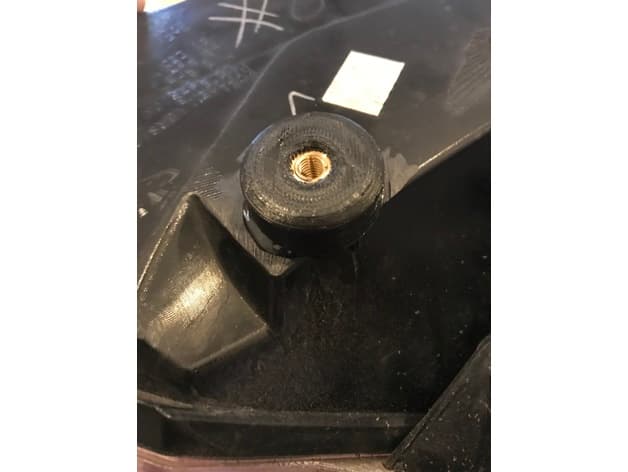

Repair block for Aston Martin headlight, requires brass insert to be pushed into hole, There are three different angled tops depending how your light sits on mounting. To help locating the block drill a very light hole where the original bolt was, but do not drill all the way through. Remove old mount and roughen plastic for good adhesion. The block has a raised edge which is used to help locate block on side edge. When mounting block use a screwdriver through block hole to locate over old bolt hole.
