Audi A4 2001-2005 (B6) Tow Hook Cap - image

Files (3)

Audi_A4_2001-2005-Tow_Hook_Cap_v010_SafetyPim.stl

STL

3.4 KB

Audi_A4_2001-2005-Tow_Hook_Cap_v011_cap_rotated.stl

STL

204.6 KB

Audi_A4_2001-2005-Tow_Hook_Cap_v011_hook_rotated.stl

STL

58.7 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

3 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG 20%	PETG 100%	100% solid	Recommendation
Audi_A4_2001-2005-Tow_Hook_Cap_v010_SafetyPim.stl	Cover / cap	3.4 KB STL	Slice file	Slice file	Slice file	Small functional file: print slowly; consider 100–100% infill for durability.
Audi_A4_2001-2005-Tow_Hook_Cap_v011_cap_rotated.stl	Cover / cap	204.6 KB STL	Slice file	Slice file	Slice file	Use PETG; check sealing faces and verify in slicer.
Audi_A4_2001-2005-Tow_Hook_Cap_v011_hook_rotated.stl	Cover / cap	58.7 KB STL	Slice file	Slice file	Slice file	Use PETG; check sealing faces and verify in slicer.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Front Bumper

Audi A4 2001-2005 (B6) Tow Hook Cap

0 downloads58 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

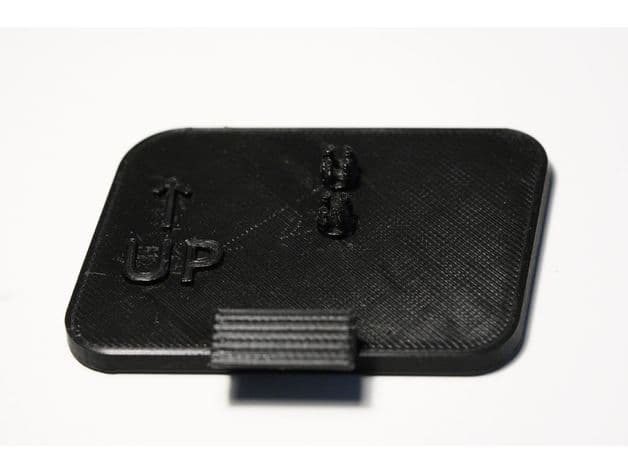

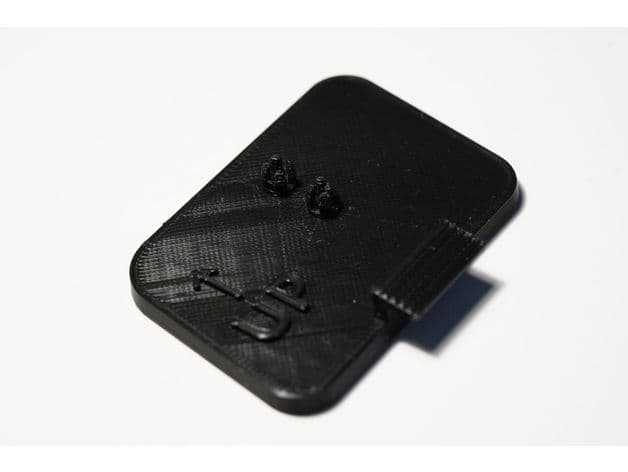

This is the cap for the tow hook on the front bumper for Audi A3/A4 2001-2005 B6. Mine is delicately and diligently broken by the tow car driver. So I designed a new one. (Note that the photos are from an older version. The one I uploaded fits super nicely to my car). The thing contains 3 parts: The cap itself, the hook that pins the cap to the bumper (couldn't find a better name) and a pin that secures the cap to the car (also couldn't find a better name). The hook needs to be glued to the rear of the cap. I designed it in that way, because if you still have the original metal hook then you can use that too. But the hook that I designed works well too. The only issue is that it is not very easy to remove. But I think it is a good thing. FreeCAD file is included and please remix this thing. Oh one nice note about the design is that I have scanned the bumper of the car with AliceVision Meshroom and it worked super well. The related part of the scanned model is included in the FreeCAD file. I printed it with PLA+ but I guess PETG is a better choice. Use %100 infill.
