Files (9)
Choose the needed variant and slice it; source file size is not printable volume.
Use the slicer's filament total; STL/3MF byte size is not a cost input.
Slice with the recommended material, infill, orientation, and supports.
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| Audi_CQ_S2_Coupe_Center_rear_upper_panel_retaining_pin.stl | Printable file | 41.7 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Audi_CQ_S2_Coupe_Left_rear_upper_panel_retaining_pin.stl | Choose left variant | 41.9 KB STL | Slice file | Slice file | Slice file | Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing. |
| Audi_CQ_S2_Coupe_Right_rear_upper_panel_retaining_pin.stl | Choose right variant | 41.9 KB STL | Slice file | Slice file | Slice file | Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing. |
| Center_Two-Piece_Part_A.stl | Accessory piece | 17.9 KB STL | Slice file | Slice file | Slice file | Small functional file: print slowly; consider 80–100% infill for durability. |
| Center_Two-Piece_Part_B.stl | Accessory piece | 15.1 KB STL | Slice file | Slice file | Slice file | Small functional file: print slowly; consider 80–100% infill for durability. |
| Left_Two-Piece_Part_A.stl | Choose left variant | 18.2 KB STL | Slice file | Slice file | Slice file | Small functional file: print slowly; consider 80–100% infill for durability. |
| Left_Two-Piece_Part_B.stl | Choose left variant | 15.3 KB STL | Slice file | Slice file | Slice file | Small functional file: print slowly; consider 80–100% infill for durability. |
| Right_Two-Piece_Part_A.stl | Choose right variant | 18.2 KB STL | Slice file | Slice file | Slice file | Small functional file: print slowly; consider 80–100% infill for durability. |
| Right_Two-Piece_Part_B.stl | Choose right variant | 15.3 KB STL | Slice file | Slice file | Slice file | Small functional file: print slowly; consider 80–100% infill for durability. |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

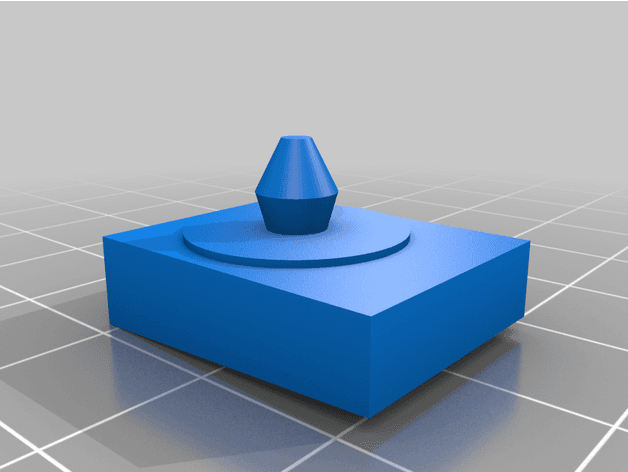

Audi B3 Coupe CQ S2 rear upper roof panel retaining pin
Shared by
3DPrintedCarPartDescription
The plastic is getting brittle on most B3 Audis. Upon removing my rear upper roof panel, the holder for the retaining pin broke. I modeled a replacement. Right and Left are for the outer ones The Center one should work with any of the four center clips. I epoxied mine in place Narrow enough to sit inside the existing slot in case some of the "walls" still remain. Update 2/9/22: With filament printing the neck of the solid design is brittle. Would recommend resin or other printing method for this If you still have your OEM pin (see pictures) then you can use the two-piece design that incorporates this part.
Compatible Cars
Originally published on thingiverse.com by Jonas Karlsson (jonaskarlsson) · License: CC BY-SA
