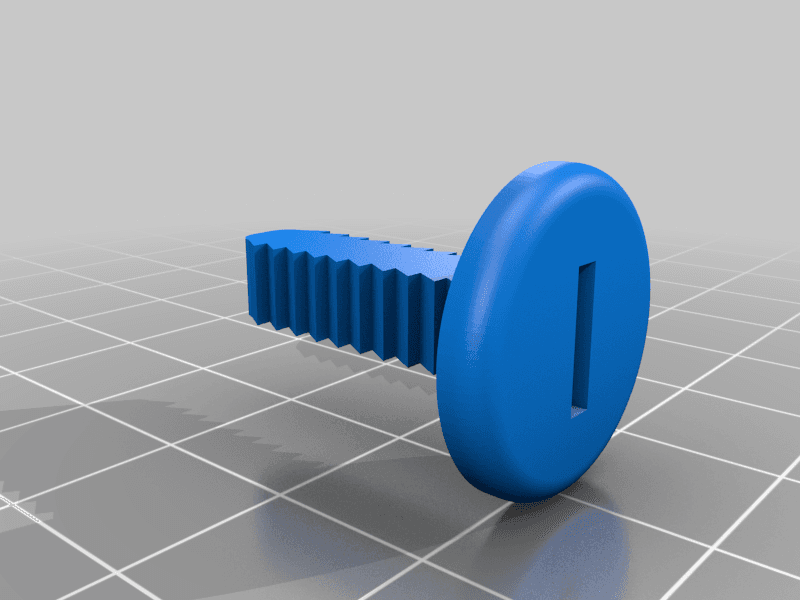

BMW e30 Interior Twist Clips for Dash & Gear Shift Console P/N: 51161932255 - image

Files (2)

E30_-_51161932255_-_Interior_Twist_Clip_v2.STL

STL

365.2 KB

E30_-_KickPanel_-_Twist_Clip.STL

STL

377.4 KB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

2 model files

Recommended kit

50g

Based on 30% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg PETG / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 30%	100% solid	Recommendation
E30_-_51161932255_-_Interior_Twist_Clip_v2.STL	Clip	365.2 KB STL	Slice file	Slice file	Slice file	Print with serrated peg pointing up
E30_-_KickPanel_-_Twist_Clip.STL	Clip	377.4 KB STL	Slice file	Slice file	Slice file	Print with serrated peg pointing up

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Interior

BMW e30 Interior Twist Clips for Dash & Gear Shift Console P/N: 51161932255

0 downloads169 views0 likes

Shared by

Michael Chen

Verified

Description

Sharing some BMW interior clips for the E30 I designed that are NLA or crazy expensive for some plastic clips (51161932255). These look pretty close to factory and match the interior trim well. Can probably work in most automotive push in or twist clip applications. Long ones are for the gear shift / center console and go in near the firewall. 2 needed. Shorter ones are for the e30 driver kick / knee panel which install right under the Tach. 3 needed. Print with serrated peg pointing up at 0.16mm at 30% infill (I used cubic), no supports needed. To use insert with serrations horizontally and use a stand 1/4 #6 flathead screwdriver and turn 90 CW to lock and 90 CCW to unlock.

Print Settings

Time: 2h

Filament: 50g

Supports: Not needed

Compatible Cars

BMW E30

Published Feb 14, 2026Updated Jul 15, 2026

Originally published on thingiverse.com · License: CC BY

Verified by drivers

Share whether this print actually fits a real car. Installed photos and material notes make the catalog more trustworthy.

Loading fitment proof…
