Files (3)

Citroen_Gear_Knob.v2B.stl

STL

362.6 KB

Citroen_Gear_Shift_Knob.ver1a.stl

STL

372.4 KB

Citroen_Gear_Shift_Knob.ver1b.stl

STL

339.7 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

3 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Citroen_Gear_Knob.v2B.stl	Printable file	362.6 KB STL	Slice file	Slice file	Slice file	Ensure proper fit on the shift shank before printing
Citroen_Gear_Shift_Knob.ver1a.stl	Printable file	372.4 KB STL	Slice file	Slice file	Slice file	Ensure proper fit on the shift shank before printing
Citroen_Gear_Shift_Knob.ver1b.stl	Printable file	339.7 KB STL	Slice file	Slice file	Slice file	Ensure proper fit on the shift shank before printing

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Knobs/Buttons

Citroen C4 5S Gear Shift Knob

0 downloads31 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

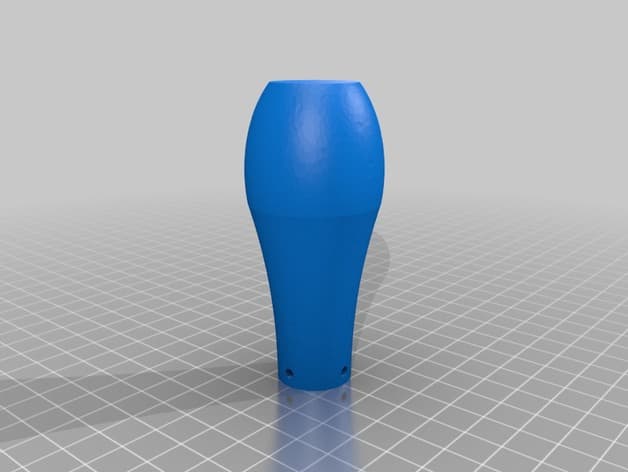

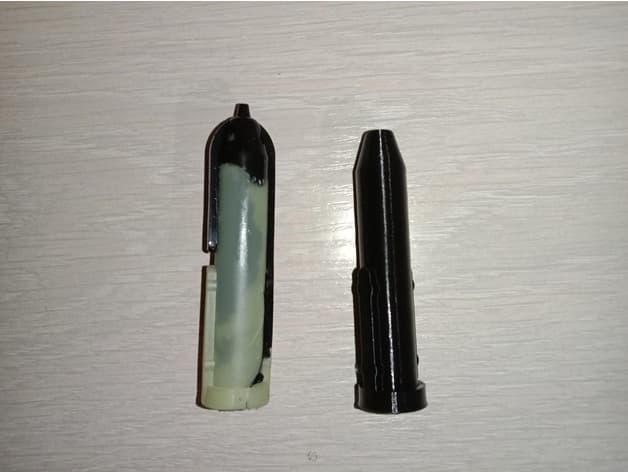

A replacement gear shift knob for Citroen C4 5S 1587CC (2006 year) I made this for my colleague and he is using version 1a now. It fits right into the shift shank. The knob won't rotate around the shank as the grooves fits nicely into the 3 ridges on the shank. While the knob can be easily removed if you pull it out, it shouldn't affect your driving unless you drive your car like a race car driver.:) Anyway I have included 4 small holes at the bottom of the knob in case you want to secure it with a grub screw or cable tie of some kind. Version 1B - My colleague wanted a rounded knob so I made another design. As of 8th March 2016, I have NOT printed and tested this version yet! As of 9th March 2016, my colleague is using version 1B. I would appreciate if you can leave a comment and/or indicate you have printed one of the designs.:) Ver 2B: Depth of internal shaft increased from 80mm to 88mm. Hopefully, it is long enough to allow a grub screw (either M3 or M4) to be used to stop knob from pulled out.
