Trunk/Tailgate

Citroen C6 Rear Numberplate Panel Repair

0 downloads26 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

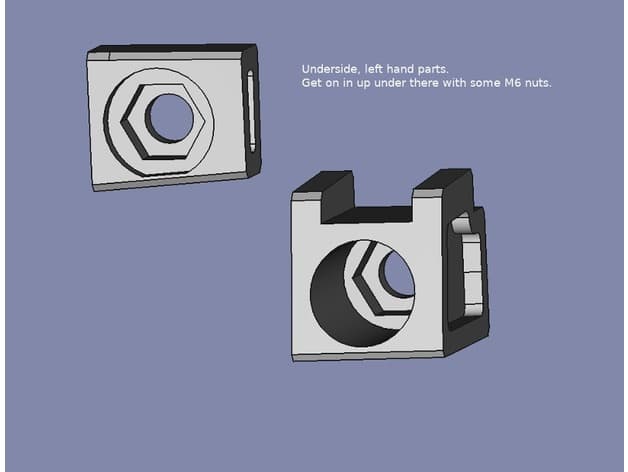

The rear numberplate panel on the Citroen C6 is held to the boot lid by four screws along the lower edge. The bolts screw into threaded clips, but the plastic supports for these clips often break. These parts hold captive nuts to replace the threaded clips and their plastic supports. 12 May 2020. Revision 2. STL files re-oriented so that Z axis is up. Slightly tighter nut pockets and minor changes for printability.
