Citroen Hydraulic Plug and Cover M36x1.5

0 downloads27 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

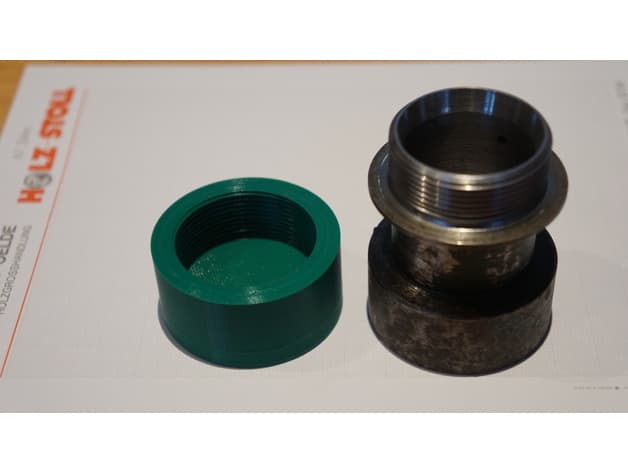

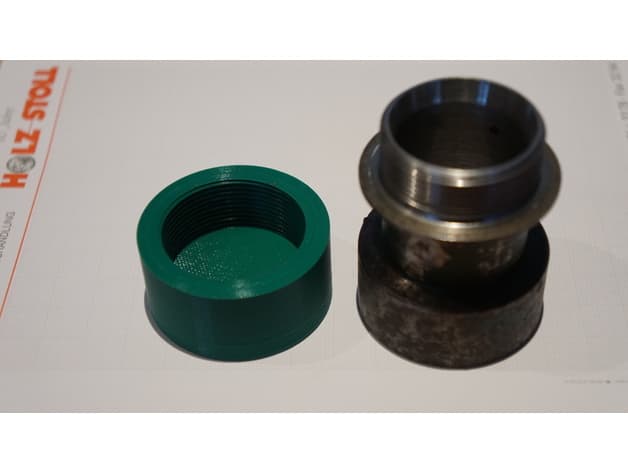

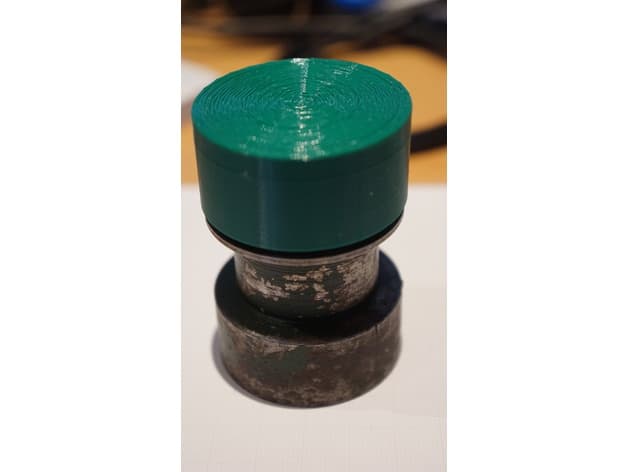

These are designed for use when working with Citroen Hydraulic parts such as the suspension cylinder and sphere. THESE PLUGS WILL NOT WORK IF THE SYSTEM IS PRESSURIZED. The system works with a pressure of 175 atmosphere so it would be surprising if plastic would work. They are for protecting the M36x1.5 thread when storing parts or for keeping the suspension system clean while working on it. Screw the plug into the cylinder while the spheres are off so that no contaminates can enter the hydraulic system.
