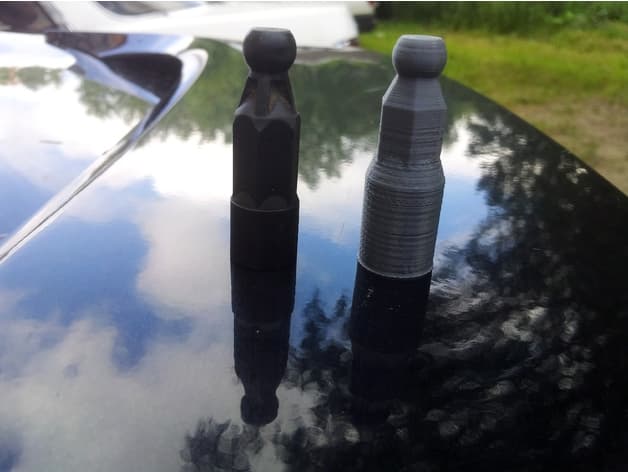

Cylinder Head Cover Fixing Stud for Ford Mondeo MK4 (Fusion) - image

Files (1)

Cylinder_Head_Cover_Fixing_Stud_for_Ford_Mondeo_MK4.STL

STL

166.2 KB

Print guidance estimate

Estimated from part metadata

Print cost & setup estimate

Planning numbers for filament, cost, time, and setup. Treat them as estimates until you confirm the file in your slicer.

1 model file

Recommended kit

12g

Based on 10% main infill across listed model files

Material cost

$0.28

Filament only at roughly $24/kg ABS / ASA

Print time

20m–34m

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	ABS / ASA 20%	ABS / ASA 10%	100% solid	Recommendation
Cylinder_Head_Cover_Fixing_Stud_for_Ford_Mondeo_MK4.STL	Cover / cap	166.2 KB STL	14g $0.34	12g $0.28	34g $0.82	Use ABS / ASA; check sealing faces and verify in slicer.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

Cylinder Head Cover Fixing Stud for Ford Mondeo MK4 (Fusion)

0 downloads39 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

Warning! It's a prototype! Please check on a real car! Cylinder Head Cover Fixing Stud for Ford Mondeo MK4 07-14 (Fusion) original OEM parts 1343455 possible suitable for Ford Focus MK2 1.8i / 2.0i 2004-2011 The engine temperature can exceed 100 degrees Celsius, use heat-resistant plastics. e.g. ABS. use M6 X 18 STUDDING CONNECTOR NUT DIN 6334.

Compatible Cars

Ford Mondeo

Published Jun 27, 2026Updated Jul 15, 2026

Originally published on thingiverse.com by Klm Klm (klmsky) · License: CC BY
