Files (6)

Arm_Shim.stl

STL

16.5 KB

Coin_Insert.stl

STL

43.8 KB

Coin_Insert_Shim.stl

STL

8.9 KB

Left_Arm.stl

STL

62.6 KB

Phone_Holder.stl

STL

72.9 KB

Right_Arm.stl

STL

62.6 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

6 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Arm_Shim.stl	Accessory piece	16.5 KB STL	Slice file	Slice file	Slice file	Small functional file: print slowly; consider 80–100% infill for durability.
Coin_Insert.stl	Printable file	43.8 KB STL	Slice file	Slice file	Slice file	Ensure good bed adhesion to prevent the Coin_Insert from lifting
Coin_Insert_Shim.stl	Accessory piece	8.9 KB STL	Slice file	Slice file	Slice file	Small functional file: print slowly; consider 80–100% infill for durability.
Left_Arm.stl	Choose left variant	62.6 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.
Phone_Holder.stl	Mount / bracket	72.9 KB STL	Slice file	Slice file	Slice file	Ensure good bed adhesion to prevent the Coin_Insert from lifting
Right_Arm.stl	Choose right variant	62.6 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA, 4 walls, 25% infill. Pick the matching side before printing.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Phone Mounts

Ford Expedition phone mount

0 downloads55 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

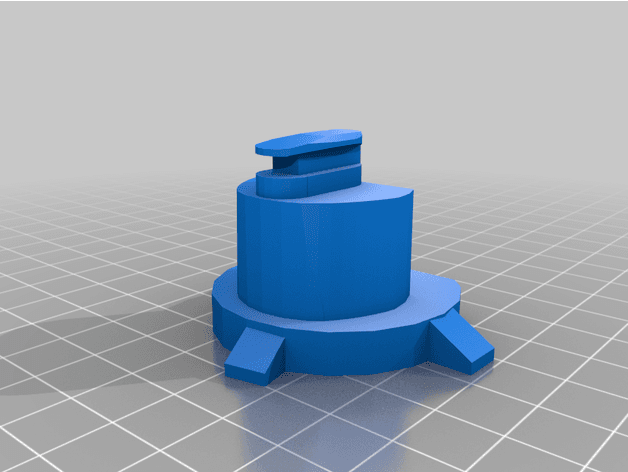

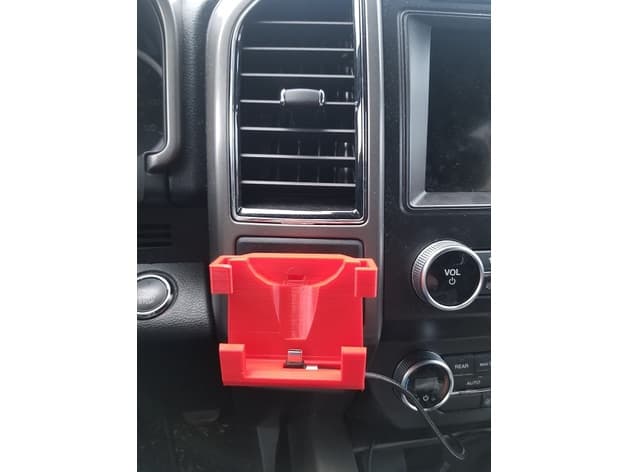

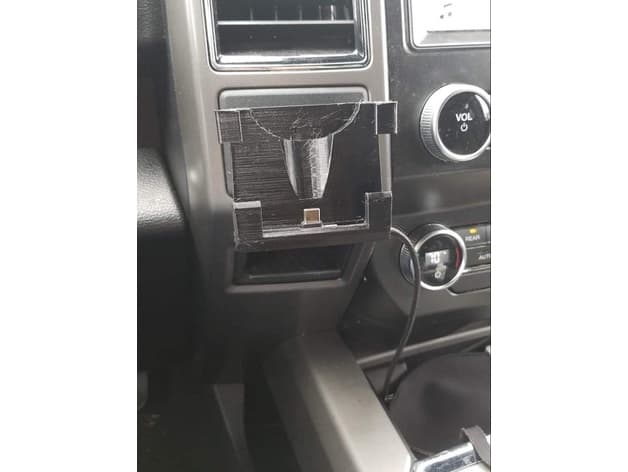

Created as a phone-dock for my Samsung Galaxy S8 Active, put would probably fit a lot of different phones. My phone is about 6" tall, 3"wide, and a half-inch deep for reference. To remove your OEM coin-insert you just need to pull on it, slipping a credit card around the edge may help if it is stubborn. Once removed, you just unsnap the center part (obvious) and insert the "Coin_Insert" in its place. When I printed the final copy (PETG) the insert lifted from the bed slightly, so instead of reprinting it I printed the "Coin_Insert_Shim" to make it more secure... that won't be necessary if you have good bed-adhesion. The phone mount requires the arms to be inserted, I tapered them so that they slide in pretty easily, but they should require some force. The USB cable I used is: https://www.amazon.com/gp/product/B07PFHB3R4/ref=ppx_yo_dt_b_asin_title_o09_s00?ie=UTF8&psc=1 It slid in securely, and was long enough to reach the OEM USB ports. Then the phone mount just slides onto the coin insert piece. And your phone should slide down over the USB-C end... if you have some other type of phone you'll (of course) need to buy the appropriate 90-degree cable. After a few months of use, I think the phone rocking (slightly) side to side was causing issues with my original USB cable, so I ordered a new cable and printed the "Arm_Shim" pieces to remove the wiggle. They're reversible, so you can use one or two, and if using two you can have one skinny and one fat... depending on your needs.
