Knobs/Buttons

Jeep Jk Grenade Shifter Knobs

0 downloads30 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

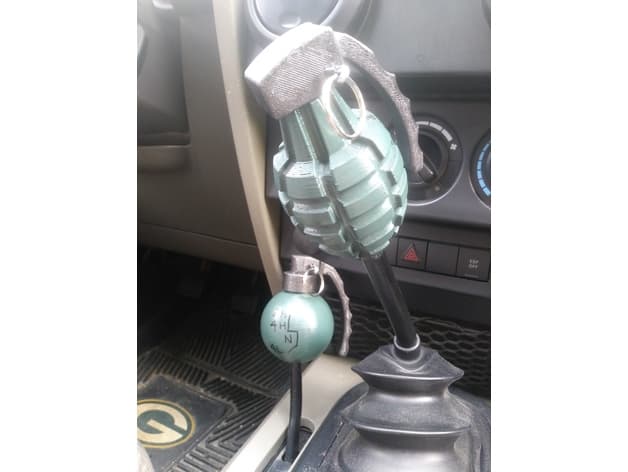

Replacement shifter knobs for Jeep Wrangler (JK) Modeled based on an MK-2 Grenade (Transmission) and an M67 Grenade (Transfer Case) To remove stock shifters, while in neutral pull hard and then twist a bit. Watch your elbows. Printed sideways and used rafts and supports for the top/ handle. May require some sanding and drilling to fit all parts. Used a cotter pin and keyring for the pin. Zip tied together to reduce rattling. Painted then super-glued together. Hot glued in place for easy removal I thought the transfer case shifter cylinder that connected the body to the top/ handle looked small. So I snapped the square post off and glued the adapter in place for a bigger look.
