Knobs/Buttons

NA Miata AC HVAC Knob and Button

0 downloads38 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

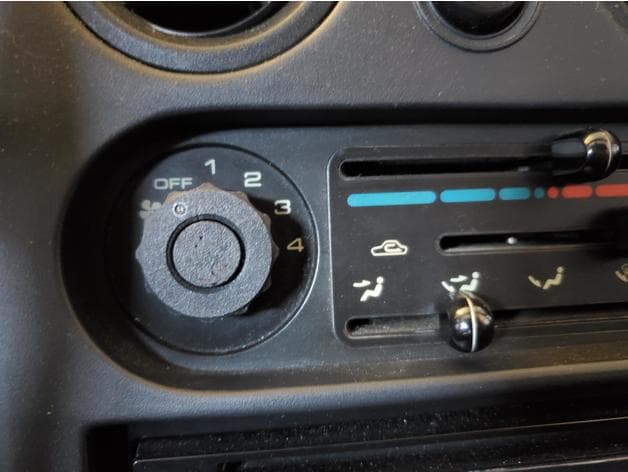

This is the Air condition knob for NA miata's (1990 to 1996) with AC option. The knob will fit exactly the same for non-ac version. Functions as it should, can't comment about robustness just yet. I printed this at 0.2mm resolution and the fit was perfect for the knob. The AC button itself was a touch loose as I was too lazy to make it spring loaded to clamp onto the actuating rod in the middle. I used generic PLA printed on an ender 3 pro. This is my very first custom design.
