Files (1)

LEAF_Wheel_Center_Cap.stl

STL

118.6 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
LEAF_Wheel_Center_Cap.stl	Cover / cap	118.6 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and verify in slicer.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Nissan LEAF wheel hub cap

0 downloads33 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

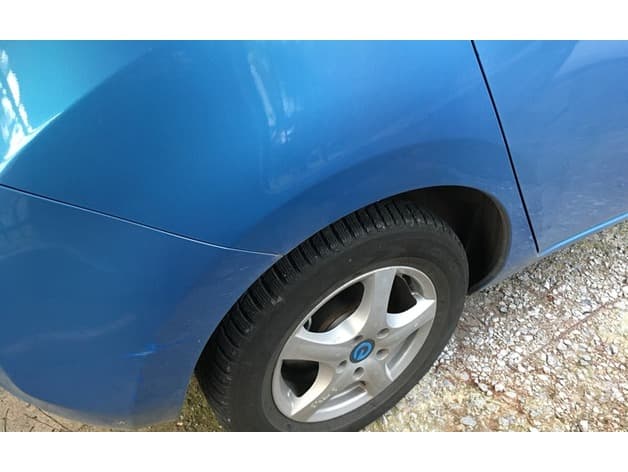

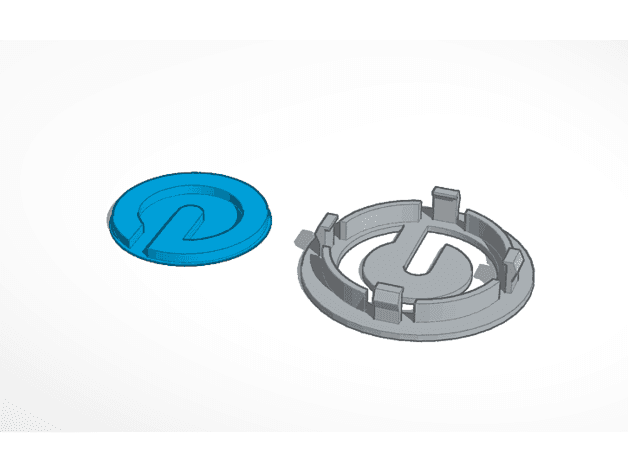

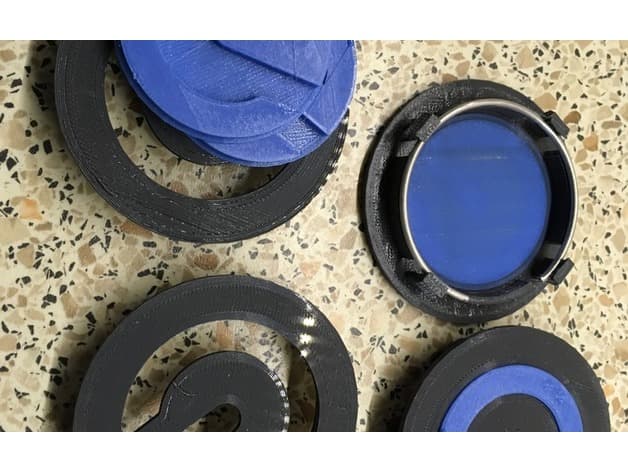

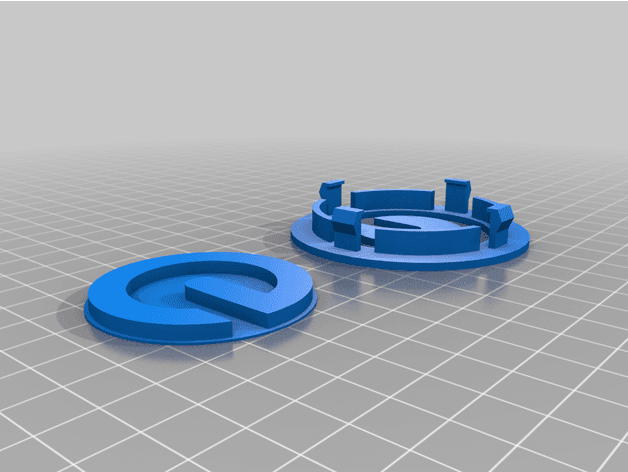

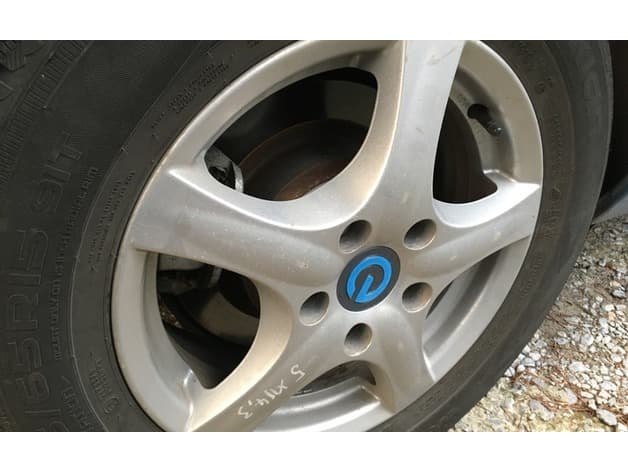

Put together this hub cap a new set of Nissan LEAF aluminum wheels, that I got as an extra set for the winter tires. The wheels originally had some generic hub caps with the wheels' firm printed on. Just print the objects with two different color filaments and push the "e" shaped one through the other. Add some super glue for permanent fixing. You should print them with a harder than PLA filament, since the items will be in direct sunlight and in high temperatures. Also, use a temperature near the top limit of the filament used, so as the lamination of the holding clips be as strong as possible. I printed mine out of PLA for testing and a few of the clips broke when adding them to the wheels. However, the cap fit very tightly and has been on for 4 months with no signs of moving. I am still on my original testing pair. TinkerCAD link: https://www.tinkercad.com/things/h1wT7FZX9Hh-leaf-wheel-center-cap
