Parcel shelf hinge Ford Focus Fiesta MK3 III

0 downloads54 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

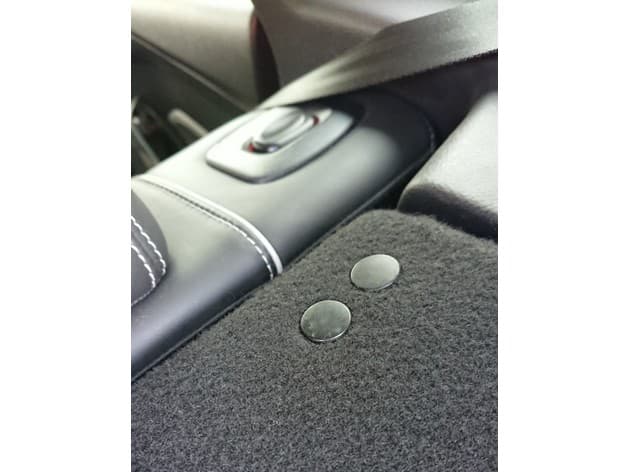

This is a simple hinge for the parcel shelf for a 2012 Ford Focus (MK3) or Ford Fiesta. The original bracket often brakes, so did mine. The cardboard-like material was so damaged, that i had to make a completely other way of connecting the hinge and the parcel shelf. This bracket is fixed with four (two for each side) plastiv rivets (bumper fastener/fender clips/etc..) for 6mm holes. I used the push pin version but others should also work. If you dont have any, ask your local car mechanic shop for them. If you dont mind the look, you can also use screws. Place the printed hinge in the middle of the cut-out and as far to the side as possible. Then drill directly the 6mm holes through the parcel shelf and fix the printed part with the clips.
