Files (1)
Based on 25% main infill across listed model files
Filament only at roughly $24/kg PETG / ASA
Uses 70 mm/s, 0.2 mm layers; verify supports in slicer
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| Ram_Quarter_V2.STL | Primary model | 878.0 KB STL | 46g $1.10 | 50g $1.20 | 110g $2.63 | Ensure proper orientation for optimal strength and minimal supports |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.
Ram 1500 - All Quarters Change Holder
Shared by
Michael ChenDescription

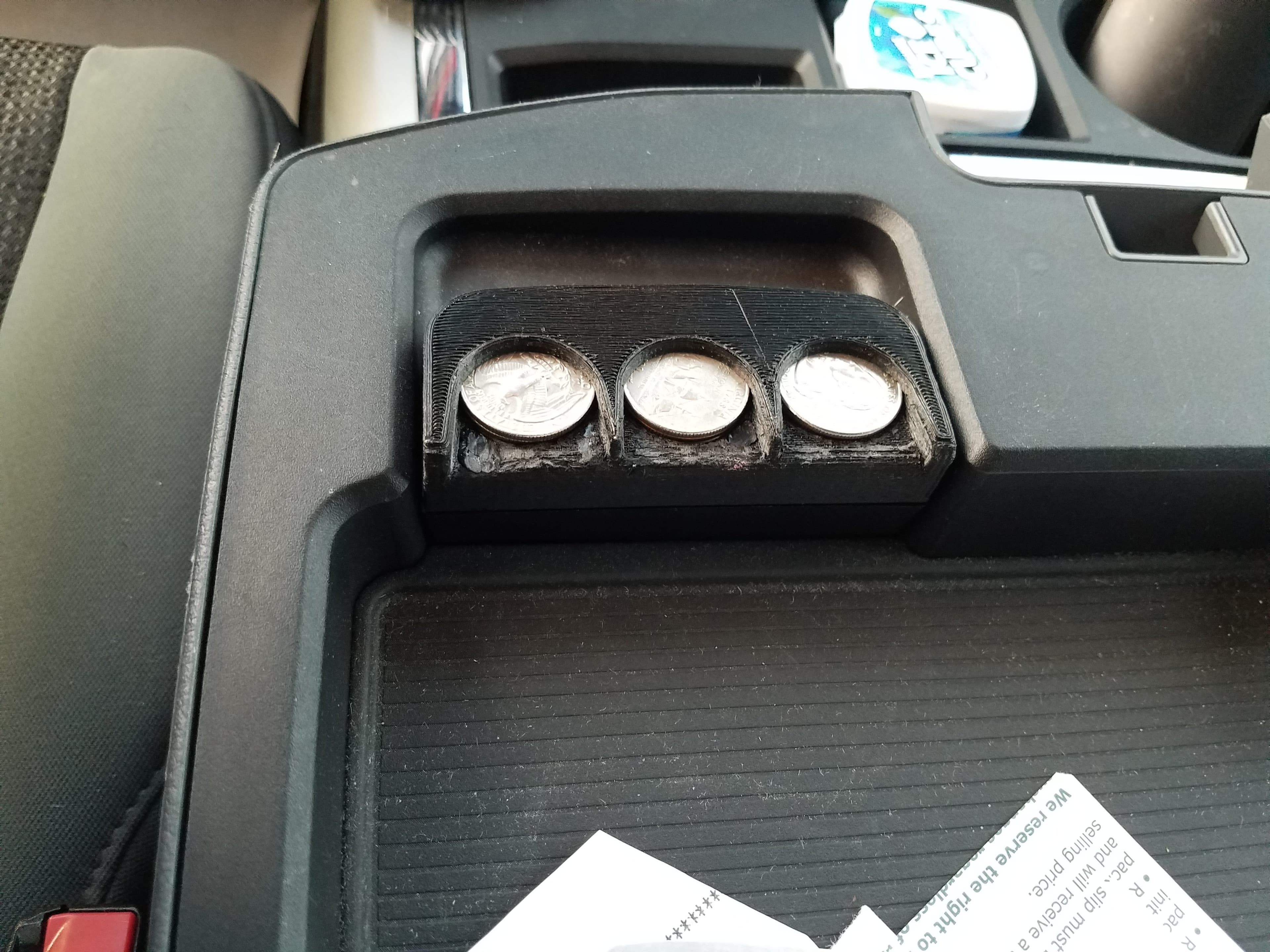

This is a "Quarters Only" Change holder for the Ram 1500. Should work for all rams 2009-2018. It replaces the top half and spring caps in the current coin holder. I got tired of only being able to hold 10 quarters at a time, and i never have any other coins (they get donated or put into piggy bank), so i redesigned the existing one to only accept quarters.This uses the existing bottom half of the coin holder, and the existing springs (3 of them) I have added the SolidWorks file as well if someone would want to use it for other things. Update 20181023: Increased the retention tab width. The original wedges in the top half were too narrow, and broke the webbing of the retention anchors in the bottom half. Printed in PLA. Sizes my vary by material.
Print Settings
Compatible Cars
Originally published on thingiverse.com · License: CC BY
Share whether this print actually fits a real car. Installed photos and material notes make the catalog more trustworthy.
Related Parts
Finding specific fitment/category matches first.
