Seat Ibiza 6L Vent Knob

Files (2)

Seat_Vent_Knob_Final.stl

STL

1.1 MB

Seat_Vent_Knob_Tapered.stl

STL

650.3 KB

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
PETG filamentAmazon · Affiliate link	Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.	Check price at Amazon
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

3 downloads344 views0 quality score

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Andrew Elvin-Dunham (andjoe)

Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.

Description

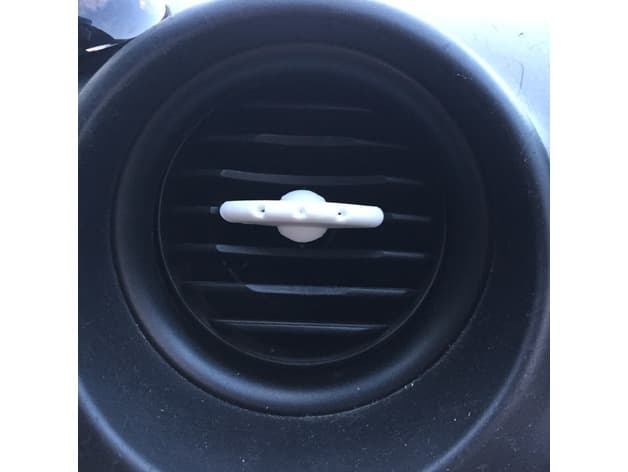

Car has gone:( This will be developed no further, edit, remix, do what you want to make it better. Regards P.S. Use the 'tapered.stl' file - the 'Final' wasn't! It's been left for you to fiddle with if required. _______________________________________________________________________ EDIT: 23/4/2018 - Changed the locating part to a tapered design (.stl says 'Tapered'), this SHOULD give a more snug fit - hold off on trying this until I have - printing it now. Stay tuned..... EDIT: 23/4/2018 - Yup, it fits FAR better, feels securely located and is now on the car. Download, print, install, enjoy! ________________________________________________________________________________ EDIT: 22/4/2018 - Just updated the stl, weirdly I already output the file from Fusion360 but made a slight error - the addition of the 'extra meat' around the 'outer retaining lugs' wasn't combined with the rest of the model. Basically it wasn't any different from the previous version!:( Also, this version has slightly shallower dimples on the front - they were breaking thru to the shell and you can see holes in the first photo. That's fixed now. Hopefully this version locates a bit more firmly, the last fitted but wasn't really hanging onto the vent enough, a good blast of hot air and it would've dropped off. It DOES say this is a work in progress....... ________________________________________________________________________________ Just for the heck of it I decided to design this. I was sat there, bored, waiting for my Wurth system to finish it's diagnostic and I started to fiddle! Right in front of me is a vent - I start to play, and then I decide to remove the knob on the front of it! Whilst it's sat there in my hand I thought 'This would be good practice to design this in Fusion360'........ so I did! I used PLA, I don't expect it to do so well in the heat but it's a bit of fun, white or red knobs look really striking against the rest of the interior. Enjoy!
