Files (1)
Slice the required model files; source file size is not printable volume.
Use the slicer's filament total; STL/3MF byte size is not a cost input.
Slice with the recommended material, infill, orientation, and supports.
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| Triumph_Spitfire_Lug-nut_hub_split_washer.stl | Primary model | 10.0 KB STL | Slice file | Slice file | Slice file | Small functional file: print slowly; consider 80–100% infill for durability. |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.
Triumph Spitfire wheel, lug-nut split-ring
Shared by
3DPrintedCarPartDescription

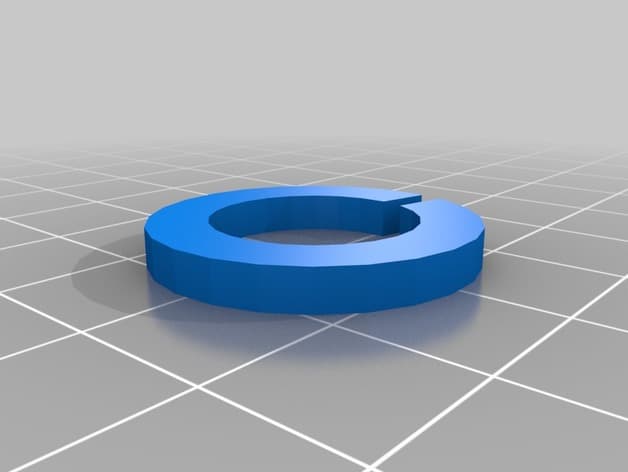

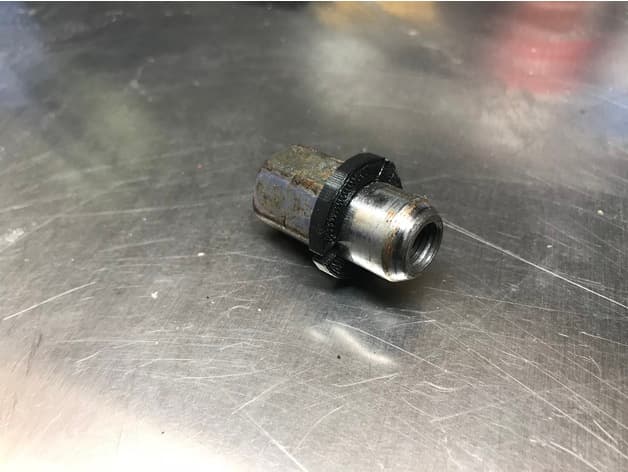

I would be amazed if anyone prints this for what it's for. But hey, it is an exact duplicate and works perfect. So if you need it, or can use for something else, here it is. The ring is 3mm thick. It has a 2mm cut. The diameter is 25mm, with an inner diameter of 15mm. The split ring is used to retain the centre hub cap from a 1975 Triumph Spitfire. I would imagine several British sports cars from the are would use this. I printed in PLA which seems to be very close to the flexibility of the original plastic clip. I've only put 15km on it so far, but will update this in time. Print temp was 195, speed 100, Black PLA from digimaker, 106% feed. Brim. It is very small, so easy to print. Likely doesn't need a brim. I would suggest sanding it down for looks only. I intend to buy new wheels, so didn't bother fussing with that.
Compatible Cars
Originally published on thingiverse.com by Jeremy Williams (JeremyDWilliams) · License: CC BY
Share whether this print actually fits a real car. Installed photos and material notes make the catalog more trustworthy.
