Universal Phone Car Mount - image

Files (3)

Vent_Clip_v2.stl
STL
87.9 KB
car_mount_v2.stl
STL
1.2 MB
Vent_Clip_v2_Rotate.stl
STL
96.7 KB
Print guidance estimate
Uses saved filament metadata
Print cost & setup estimate
Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.
3 model files
Recommended kit
50g

Based on 25% main infill across listed model files

Material cost
$1.20

Filament only at roughly $24/kg PETG / ASA

Print time
2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL fileRoleSource sizePETG / ASA 20%PETG / ASA 25%100% solidRecommendation
Vent_Clip_v2.stlClip87.9 KB STLSlice fileSlice fileSlice filePrint the vent clip separately and glue it into the slot after printing.
car_mount_v2.stlMount / bracket1.2 MB STLSlice fileSlice fileSlice filePrint the vent clip separately and glue it into the slot after printing.
Vent_Clip_v2_Rotate.stlClip96.7 KB STLSlice fileSlice fileSlice filePrint the vent clip separately and glue it into the slot after printing.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Accessories

Universal Phone Car Mount

0 downloads136 views0 likes
MC

Shared by

Michael Chen
Verified

Description

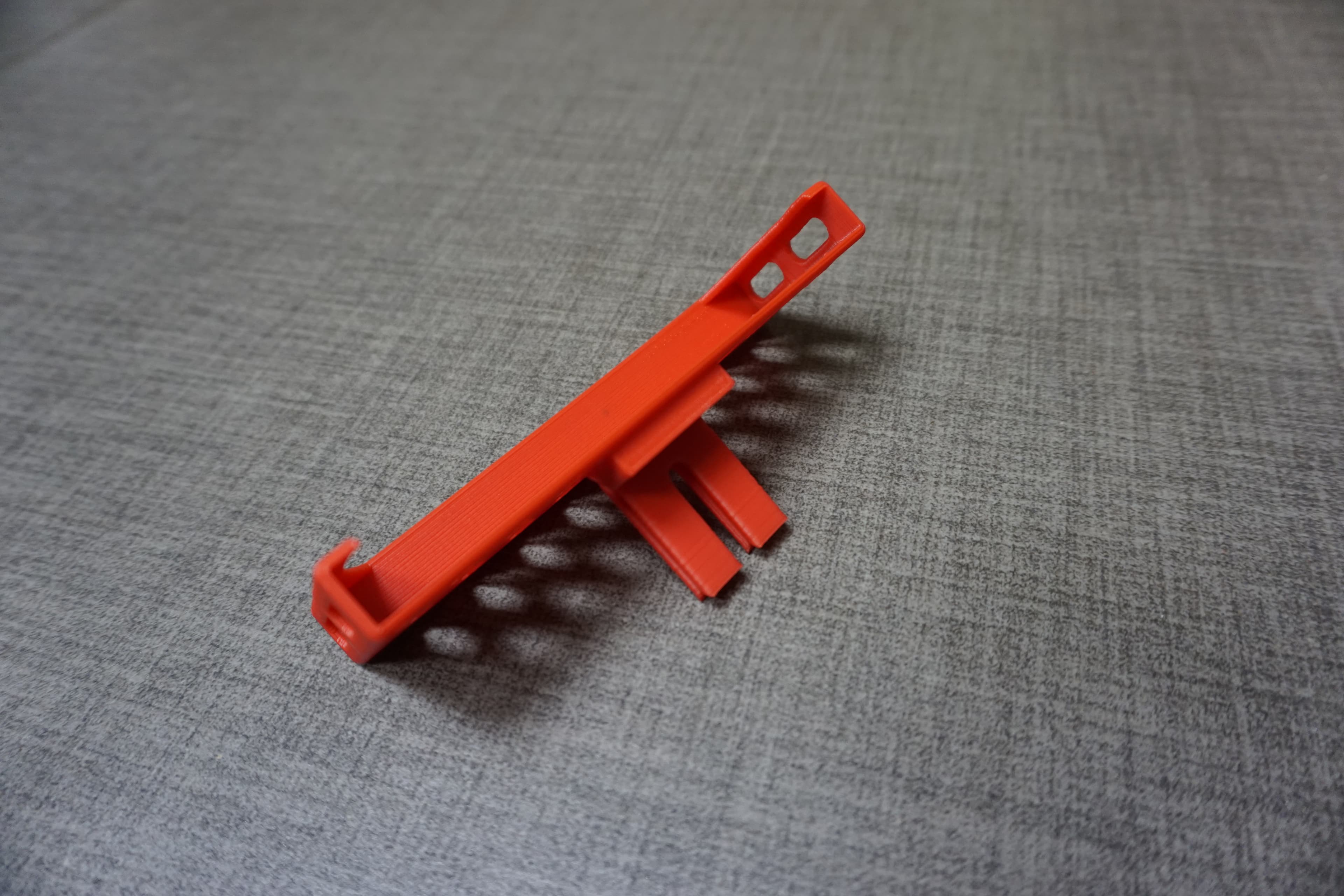

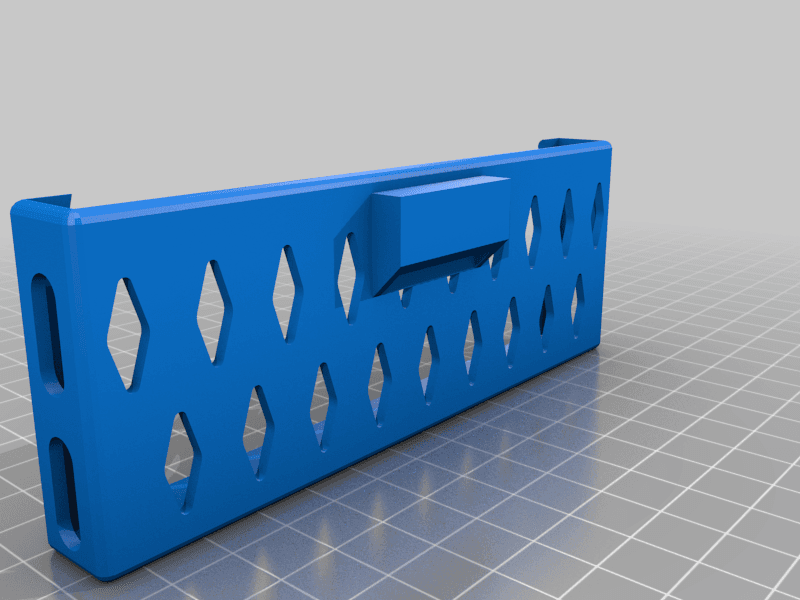

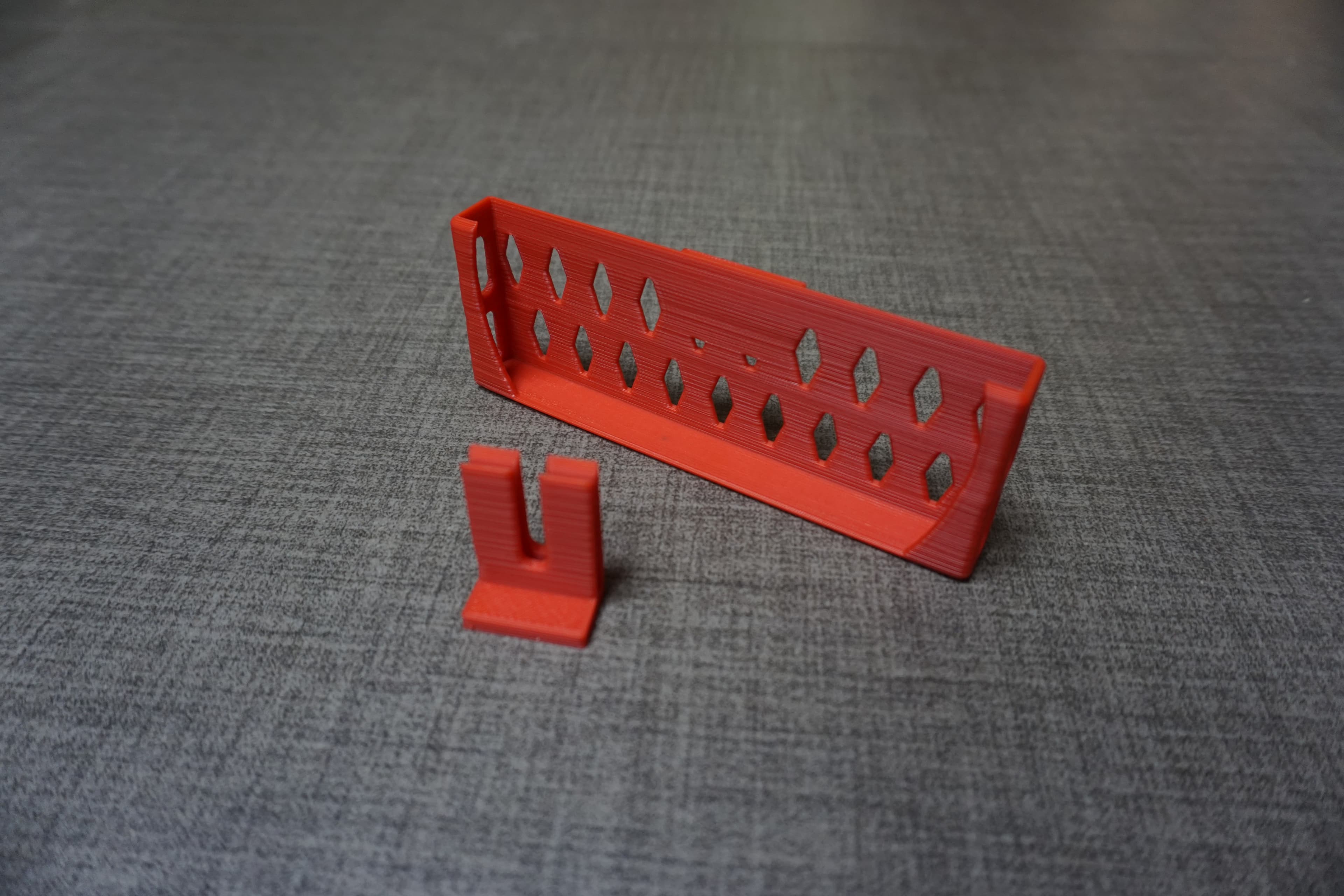

This car phone mount can be customized to accommodate a wide range of phones and cases. It clips onto the vent using the really nice vent clip designed by jasper_pues. The concept was inspired by the gcode developed by diametric. Update Apr 20, 2015: Unfortunately I had to remove the rounded edges due to a problem with the customerizer. Use the customizer to put in the dimensions of your phone or case. The sized you put in will be the size of the space on the holder. You should add one or two millimeters to the sizes you measure on your phone to make sure you can slide it in and out easily. The vent clip is printed separately and should be glued into the slot once the prints are done. A couple of drops of superglue works great. The clip prints stronger if you lay it on it's side, if you do you'll need support, otherwise, no support should be needed. You may need to clip off a string or two from the mounting slot depending on how well you printer does bridging. Obviously, your printer will need to be well calibrated to print this the correct size.

Print Settings

Time: 2h
Filament: 50g
Supports: Not needed
Published Mar 6, 2026Updated Jul 15, 2026

Originally published on thingiverse.com · License: CC BY
