STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 30%	100% solid	Recommendation
6.5_Speaker_Ring.stl	Primary model	158.2 KB STL	Slice file	Slice file	Slice file	Print with bridging enabled for optimal results

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Door Panels

Volkswagen 6.5" Speaker Ring Spacer for JL C1-650

0 downloads56 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

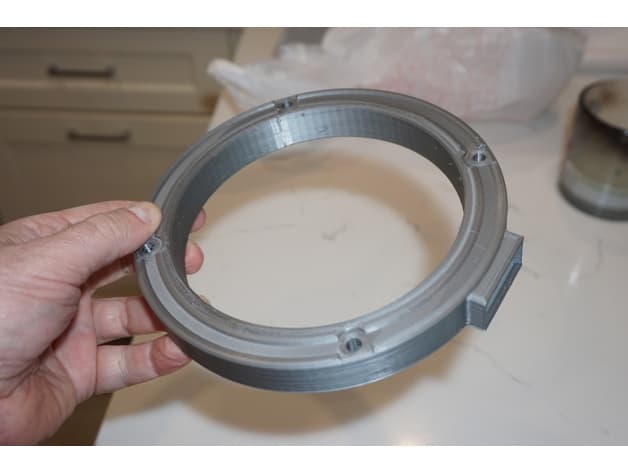

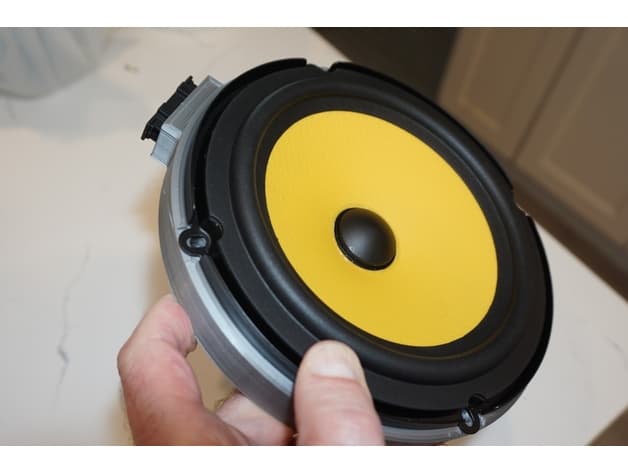

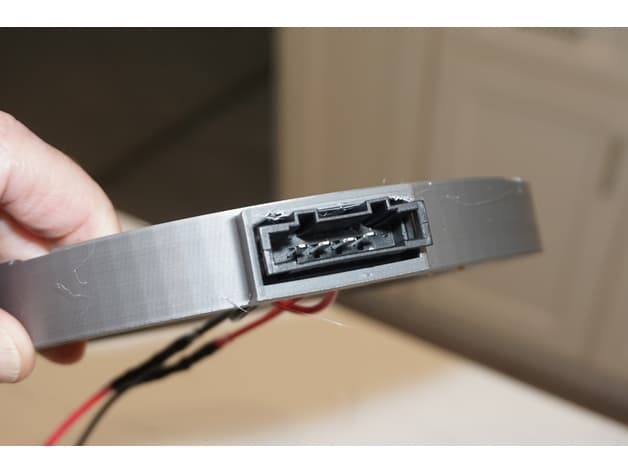

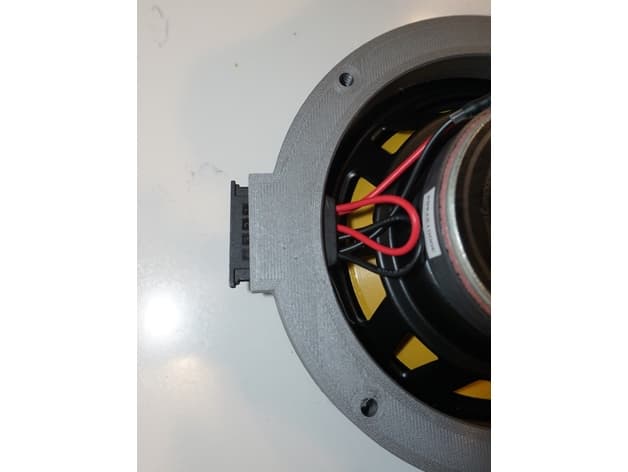

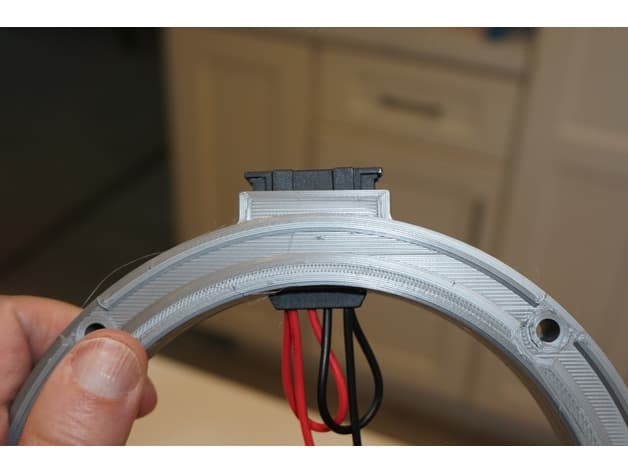

This is a 6.5" door speaker adapter/spacer for VW's using an aftermarket wiring harness adapters like these. Note it seems that most of these are wired opposite polarity for newer VW's, so you'll need to cut and splice back together for correct +/- orientation: https://www.amazon.com/gp/product/B082TPKG2L/ref=ppx_yo_dt_b_asin_title_o01_s03?ie=UTF8&psc=1 You slide the adapter plug into the side of the spacer ring. the slot is friction fit, and holds the adapter tight and secure. This particular spacer was made specifically for the JL C1-650, but can probably be used on other 6.5" speakers. https://www.amazon.com/gp/product/B074SVDB1S/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1 Recommended to print in PETG or ABS/ASA. I used 4 walls and 30% infill, with bridging enabled.
