Volvo S60 Speaker ring - image

Files (1)

Speaker_ring_Volvo_S60_v2.stl
STL
151.1 KB
Print guidance estimate
Slicer data required
Print cost & setup estimate
Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.
1 model file
Recommended kit
Slice required

Slice the required model files; source file size is not printable volume.

Material cost
Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time
Slice required

Slice with the recommended material, infill, orientation, and supports.

STL fileRoleSource sizePETG 20%PETG 25%100% solidRecommendation
Speaker_ring_Volvo_S60_v2.stlPrimary model151.1 KB STLSlice fileSlice fileSlice fileUse a brim or raft for better adhesion if necessary

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Interior

Volvo S60 Speaker ring

0 downloads46 views0 likes
3DPrintedCarPart logo
Verified

Description

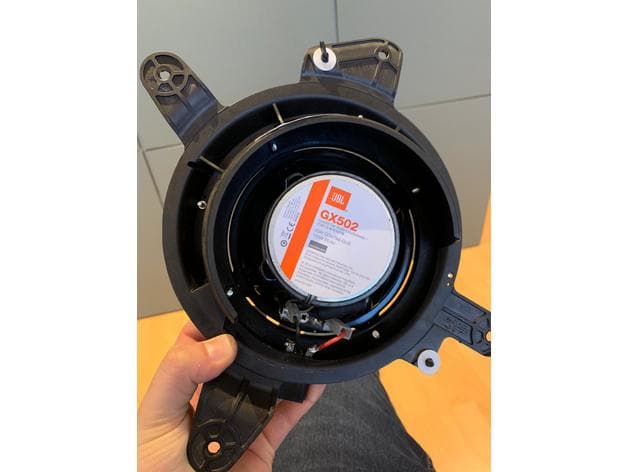

I wanted to replace the speakers in my Volvo S60 2003, only to find that the stock speakers are larger than my JBL GX502 ones I used in my old car. Volvo doesn't really make it easy on anyone to replace the speakers. Was searching for a ring that would allow me to fit 5.25" (130mm) speakers in the 6.5" (165mm) hole. Unfortunately no real luck, so I had to create my own version, which is also my very first project in Fusion 360. Not bad after all. The holes that align with the volvo bracket are 2mm, but I would recommend to drill them to 3mm, as 2mm screws are not too common. Also because this is just a thin ring that doesn't really take drilling that well, use bolts and nuts instead to secure ring to bracket. The speakers holes itself are 4mm, and if you don't overdo it, it will secure just fine with only screws.

Compatible Cars

Published Jun 27, 2026Updated Jul 15, 2026

Originally published on thingiverse.com by Patrick Pennarts (captainpatje) · License: CC BY
