Trunk/Tailgate

VW Golf MK7 Rear Trunk Cargo Hook

0 downloads54 views0 likes

Download at source

Shared by

3DPrintedCarPart

Verified

Description

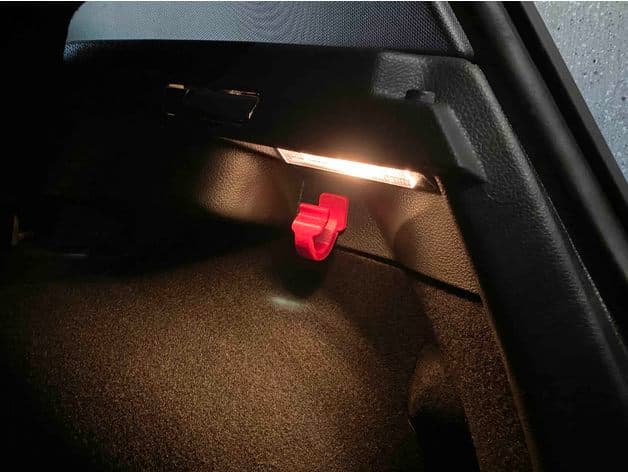

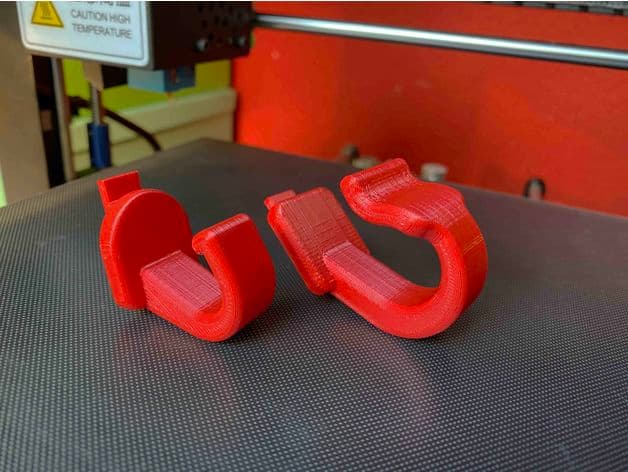

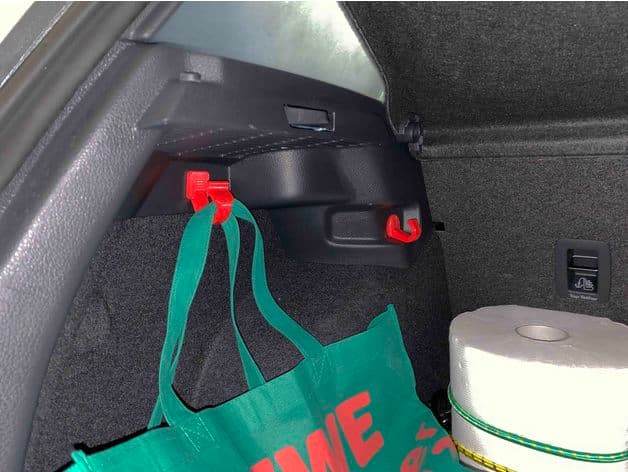

Cargo Hooks for the rear trunk of an Volkswagen Golf MK7. Because the original "cargo hook" didn't secure literally anything, I made my own cargo hooks. Now your groceries wouldn't fly all over the cargo area. There are two versions marked on the backside with "H" or "F". Hook type H is (only) for the mounting position near the taillights and hook type F ismeant to be attached to the mounting position near the backseat. Type F will fit both monting positions. I used the same clip design like the original part and it worked well. You may have to play a little bit with the amount of infill an infill type. Printing instructions: Material: PETG (PLA will get soft on summer) Infill: 50% Number of perimeter: 2 Layer hight: 0.2 Orientation on the printbed: lying on one side (to ensure the best layer strenght possible) Support: Yes, approx. 50% Print bed adhesion: Use brim I'm looking forward to see some pictures of your own prints.
