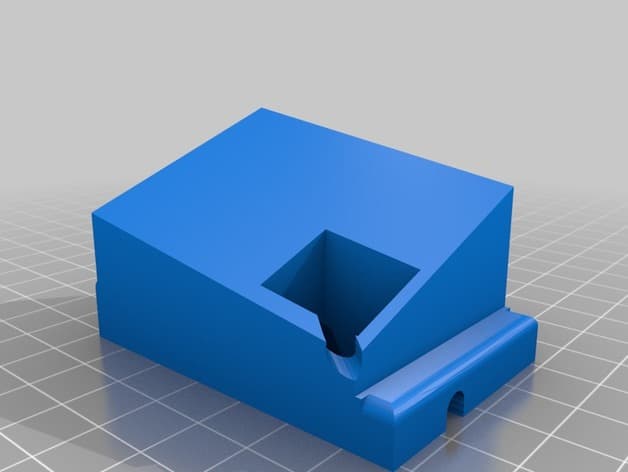

VW UHV adaptor (angled + cable holes)

0 downloads41 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

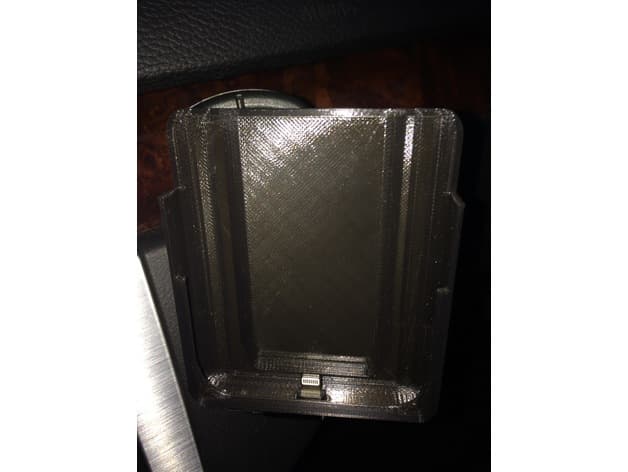

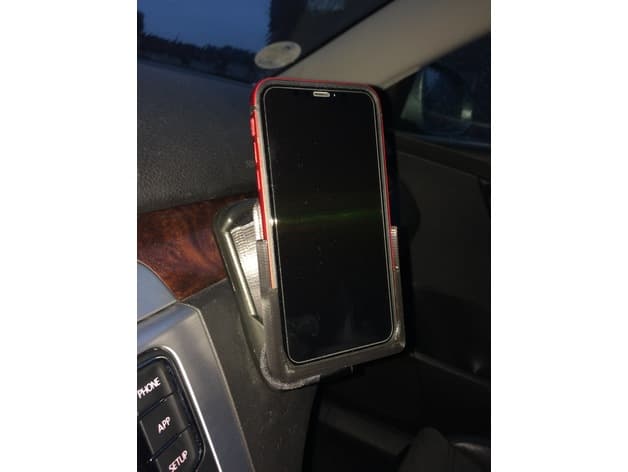

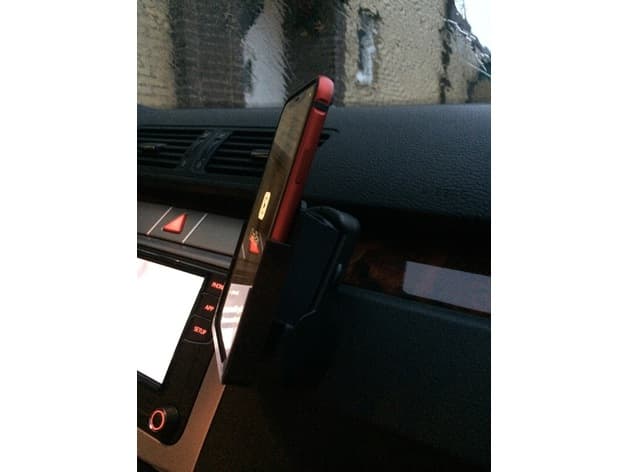

As I have installed a new RCD-330 car audio device containing apple car play into my Passat 3C B6 I wanted to reuse my existing vw phone adaptor. To do so I have soldered a USB extension cable to the back of the new radio. Then I have disassembled the phone adaptor, removed the original cable pushed it through the hole in the dashboard. Then I have put the radio USB cable right behind the phone adaptor and connected a short charging cable to it. Finally I have printed the adaptor here, put the cable through it and glued the phone mount specific to my phone on it. This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/kiViB4Mkc33
