Wiper fluid cap for Peugeot/Citroen

0 downloads43 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

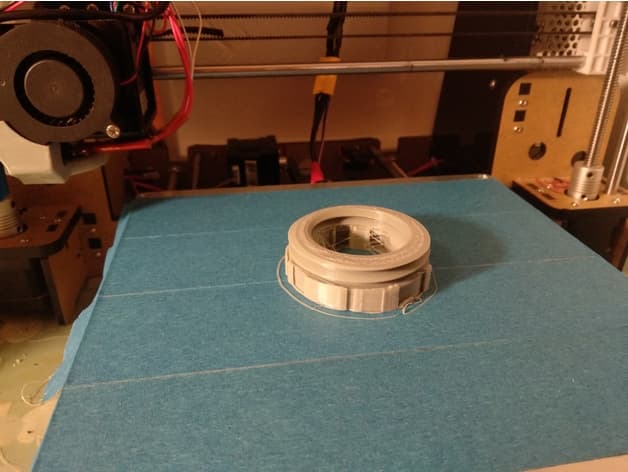

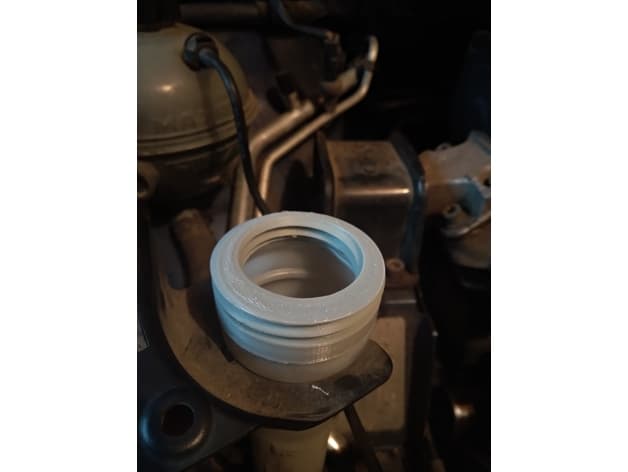

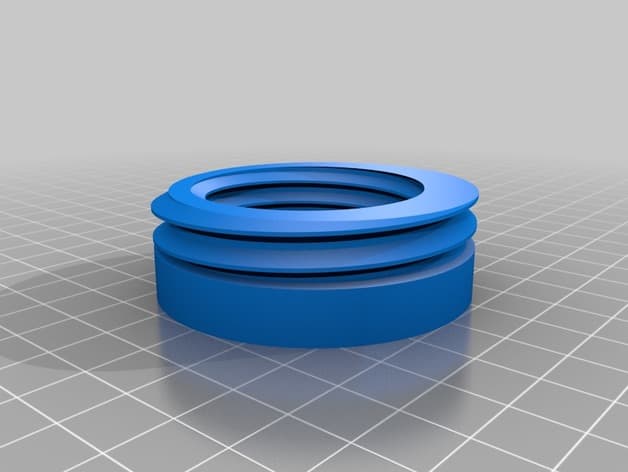

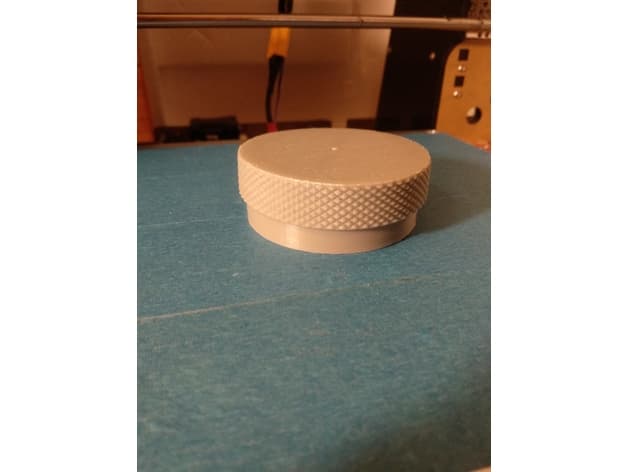

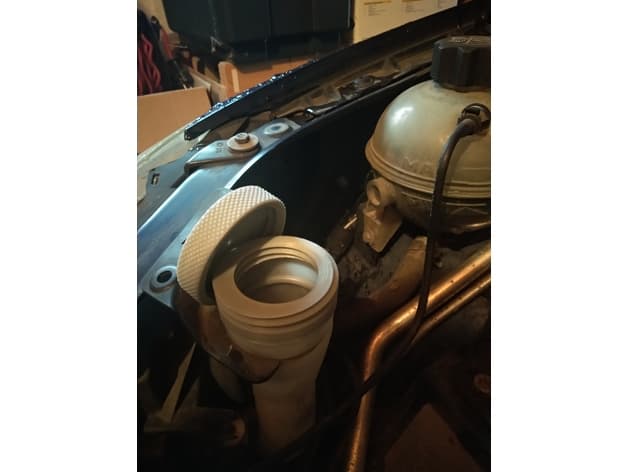

This is wiper fluid cap for Peugeot 307. However it should also work on Peugeot 106/206/207/or Citroen C2/C-Elysee/Xsara/Picasso. I designed is as screwable cap, because i had had always problem with tearing the cap from a hinge. Furthermore i put inside M45 x 4.5 thread for other modifications as funnel... Print the adapter part with supports touching the build plate. I highly recommend using ABS or any other material, which can withstand higher temperatures.
