Files (2)
Based on 25% main infill across listed model files
Filament only at roughly $24/kg PETG / ASA
Uses 70 mm/s, 0.2 mm layers; verify supports in slicer
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| V2_Bottom.stl | Printable file | 57.8 KB STL | Slice file | Slice file | Slice file | Print the bottom part on its side and the top part upside-down as recommended |
| V2_Top.stl | Printable file | 34.5 KB STL | Slice file | Slice file | Slice file | Print the bottom part on its side and the top part upside-down as recommended |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.
240SX S13 -6an Fuel Line Retainer Bracket
Shared by
Michael ChenDescription

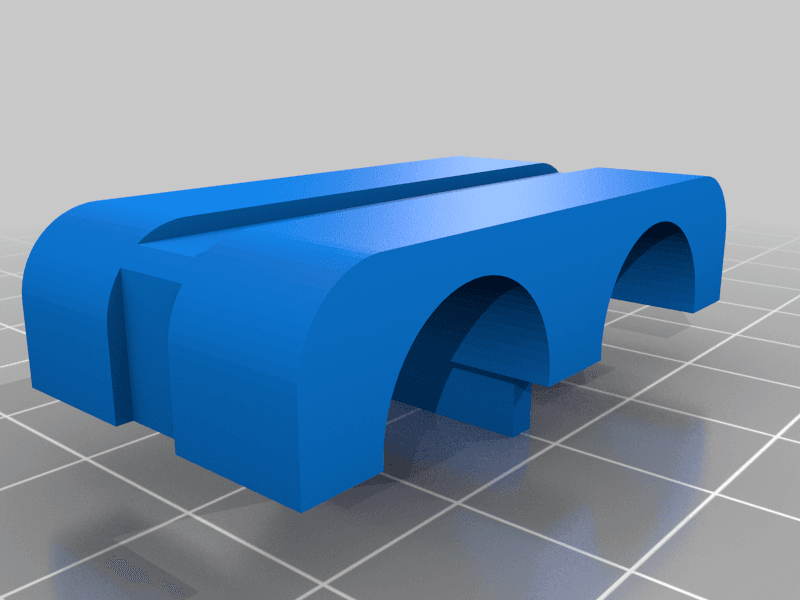

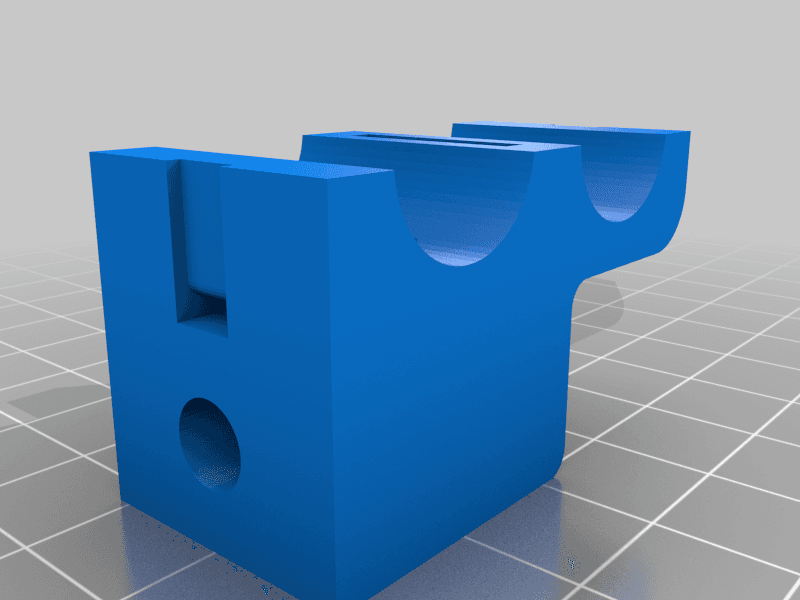

Fuel line retainer brackets for S13 240SX's to run a -6an braided line from the fuel tank to the engine bay. Retains use of the factory bolt holes in the frame rails and a M6 cap head bolt. There is a channel through/around the center of the part that allows for a zip tie to be fed through to hold both parts together. before installing. Have tested it with nylon braided line that measures ~14mm in diameter, fit is snug. Depending on your printers accuracy the locating block on the top part may need some sanding to fit properly into the bottom part Bottom is printed on its side, top is printed up-side down. If you find a better way to print the parts feel free to make a recommendation.
Print Settings
Compatible Cars
Originally published on thingiverse.com · License: CC BY
