Mechanical/Functional

3.0T ethanol sensor bracket

0 downloads39 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

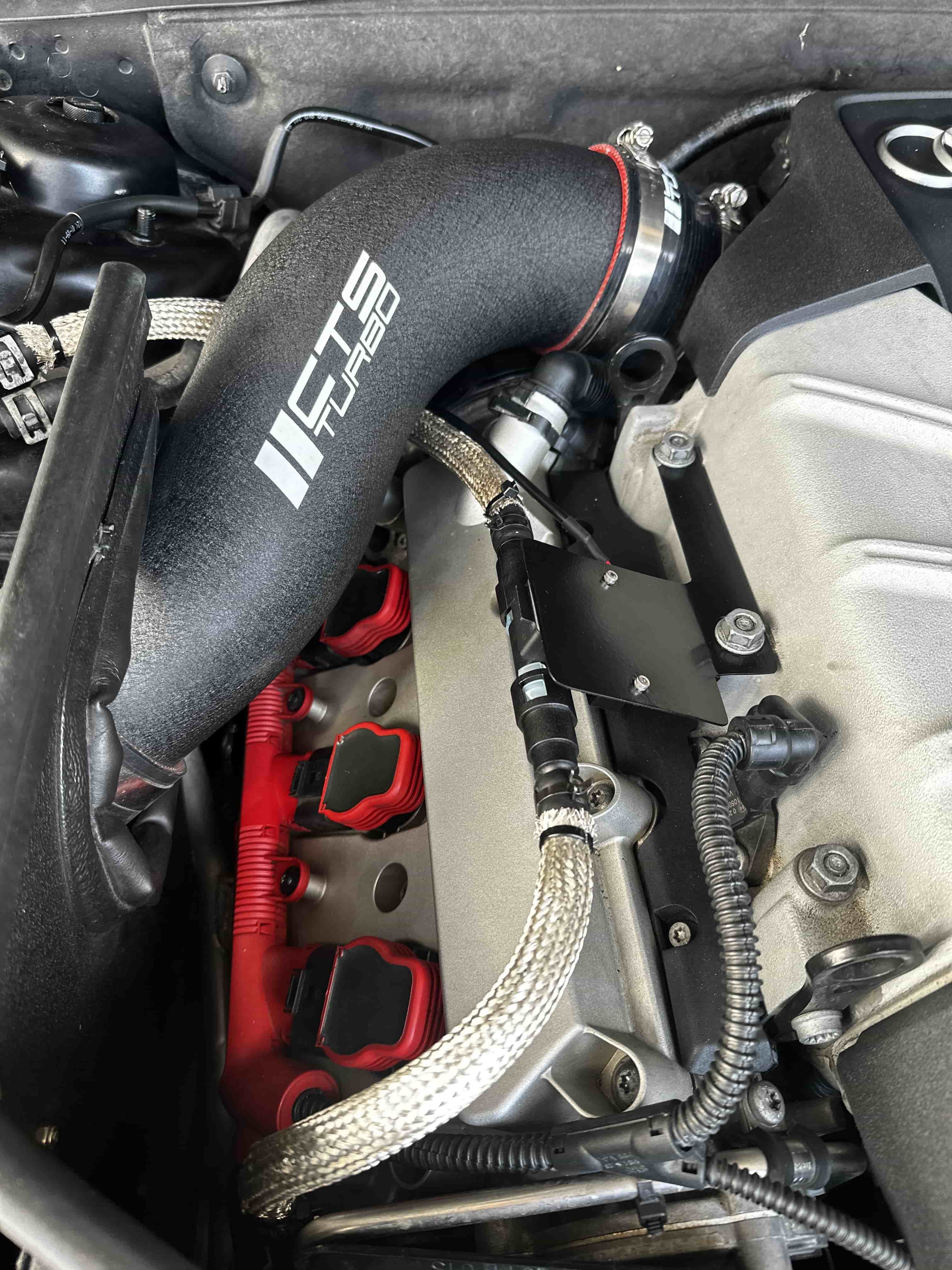

Innovate motorsports ethanol sensor bracket. I 3D printed the bracket, then traced it onto a sheet of aluminum that I cut out, bent at an angle and painted. The other file is another bracket that I 3D printed in PETG that straddles the ethanol sensor so it can be bolted down to the bracket.
