8/14.Engine Stand for the Ford FlatHead V8

0 downloads35 views0 likes

Download at source

Shared by

3DPrintedCarPart

Verified

Description

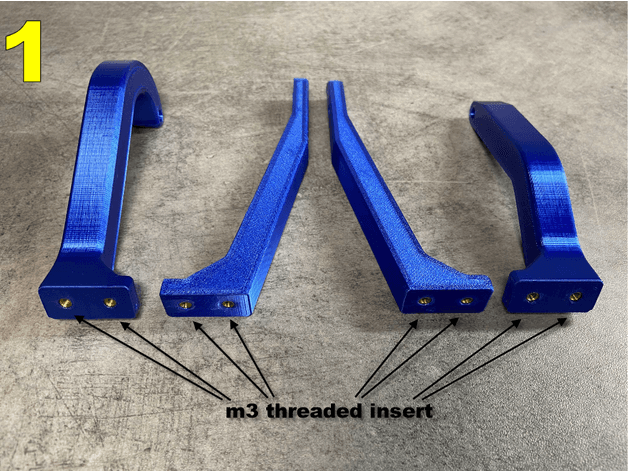

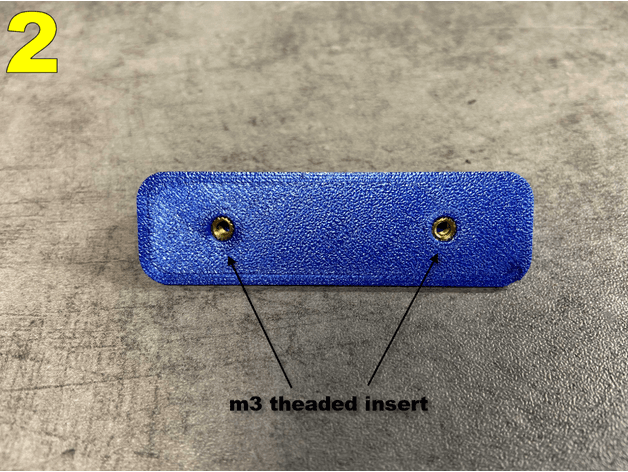

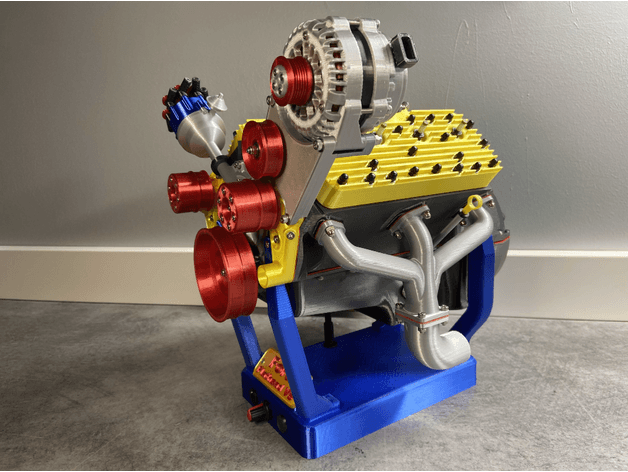

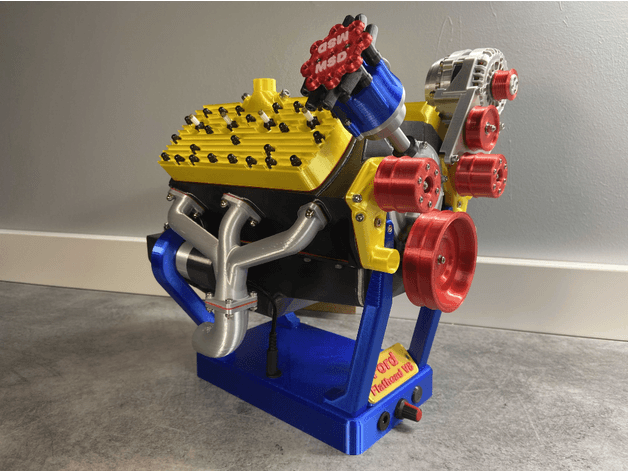

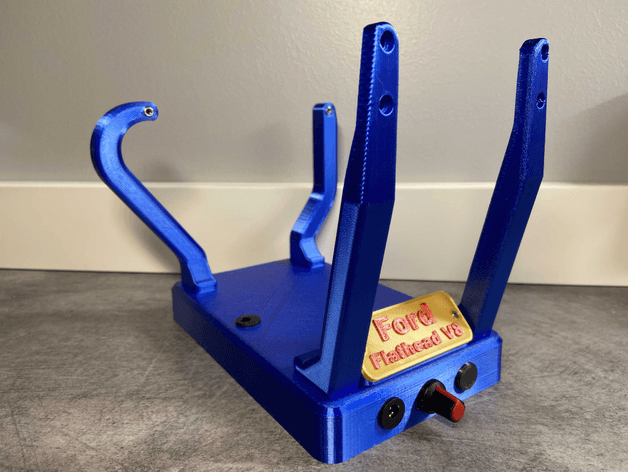

This is an Engine Stand extension for the Ford FlatHead V8 (https://www.thingiverse.com/thing:2537602). The mounting holes are already present on the engine block. # Print Settings 1 x EngineStandBackLeft: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandBackLeftSpacer: Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x EngineStandBackRight: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandBackRightSpacer: Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x EngineStandBottom: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandClasp: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandFrontLeft: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandFrontRight: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandLogo: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% 1 x EngineStandLogoSupport: Layer:0.15mm Raft:no Brim:no Support:no Infill:20% # Accessories 14 x m3 threaded insert 2 x m2x5mm SHCS 18 x m3x8mm SHCS 2 x m3x30mm SHCS 10 x m3 washer 2 x m3 jam nut 1 x electric wire (~20cm) 1 x variable speed controller: https://www.amazon.fr/gp/product/B07MPWGF7P/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1 2 x DC female panel mount jack: https://www.amazon.fr/gp/product/B07QPZTHDK/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1 # Mounting Look at pictures.
