BMW S54B32 Inline 6 Cylinder Engine - image

Files (17)

S54_Oil_Fill_Cap.stl

STL

397.3 KB

Engine_Stand_Base.stl

STL

1.4 KB

vanos.STL

STL

30.9 MB

Stand_Plate_v1_Arm.stl

STL

26.7 KB

oil_pan.STL

STL

6.3 MB

Airbox.stl

STL

723.8 KB

Valve_Cover_2.STL

STL

28.9 MB

engine_stand.STL

STL

33.6 KB

Block.STL

STL

47.0 MB

front_timing_cover.STL

STL

6.2 MB

rear_main_cover.STL

STL

2.7 MB

Engine_Cover.stl

STL

1.5 MB

Stand_Plate_v1.stl

STL

38.1 KB

Stand_Plate_v2.stl

STL

49.8 KB

Cylinder_Head.STL

STL

67.6 MB

Headers.stl

STL

1.4 MB

Throttle_Bodies.stl

STL

2.1 MB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

17 model files

Recommended kit

50g

Based on 25% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg PETG / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
S54_Oil_Fill_Cap.stl	Cover / cap	397.3 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and verify in slicer.
Engine_Stand_Base.stl	Accessory piece	1.4 KB STL	Slice file	Slice file	Slice file	Small functional file: print slowly; consider 80–100% infill for durability.
vanos.STL	Printable file	30.9 MB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
Stand_Plate_v1_Arm.stl	Printable file	26.7 KB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
oil_pan.STL	Printable file	6.3 MB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
Airbox.stl	Printable file	723.8 KB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
Valve_Cover_2.STL	Cover / cap	28.9 MB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and verify in slicer.
engine_stand.STL	Printable file	33.6 KB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
Block.STL	Printable file	47.0 MB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
front_timing_cover.STL	Cover / cap	6.2 MB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and verify in slicer.
rear_main_cover.STL	Cover / cap	2.7 MB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and verify in slicer.
Engine_Cover.stl	Cover / cap	1.5 MB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and verify in slicer.
Stand_Plate_v1.stl	Printable file	38.1 KB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
Stand_Plate_v2.stl	Printable file	49.8 KB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
Cylinder_Head.STL	Printable file	67.6 MB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
Headers.stl	Printable file	1.4 MB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4
Throttle_Bodies.stl	Printable file	2.1 MB STL	Slice file	Slice file	Slice file	Scale the engine parts to fit your build platform, considering the engine stand is scaled at 1:4

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

BMW S54B32 Inline 6 Cylinder Engine

0 downloads318 views0 likes

Shared by

Michael Chen

Verified

Description

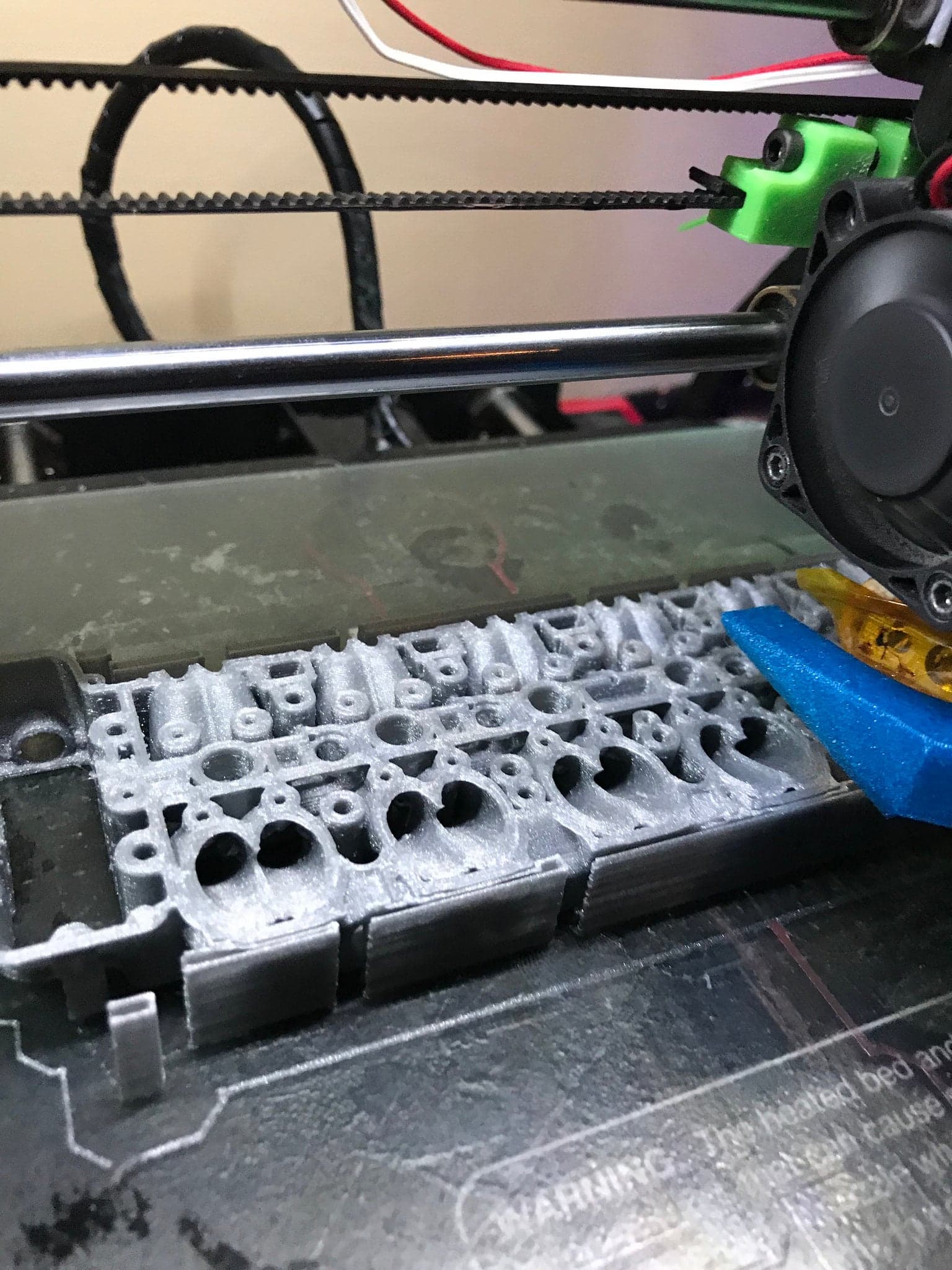

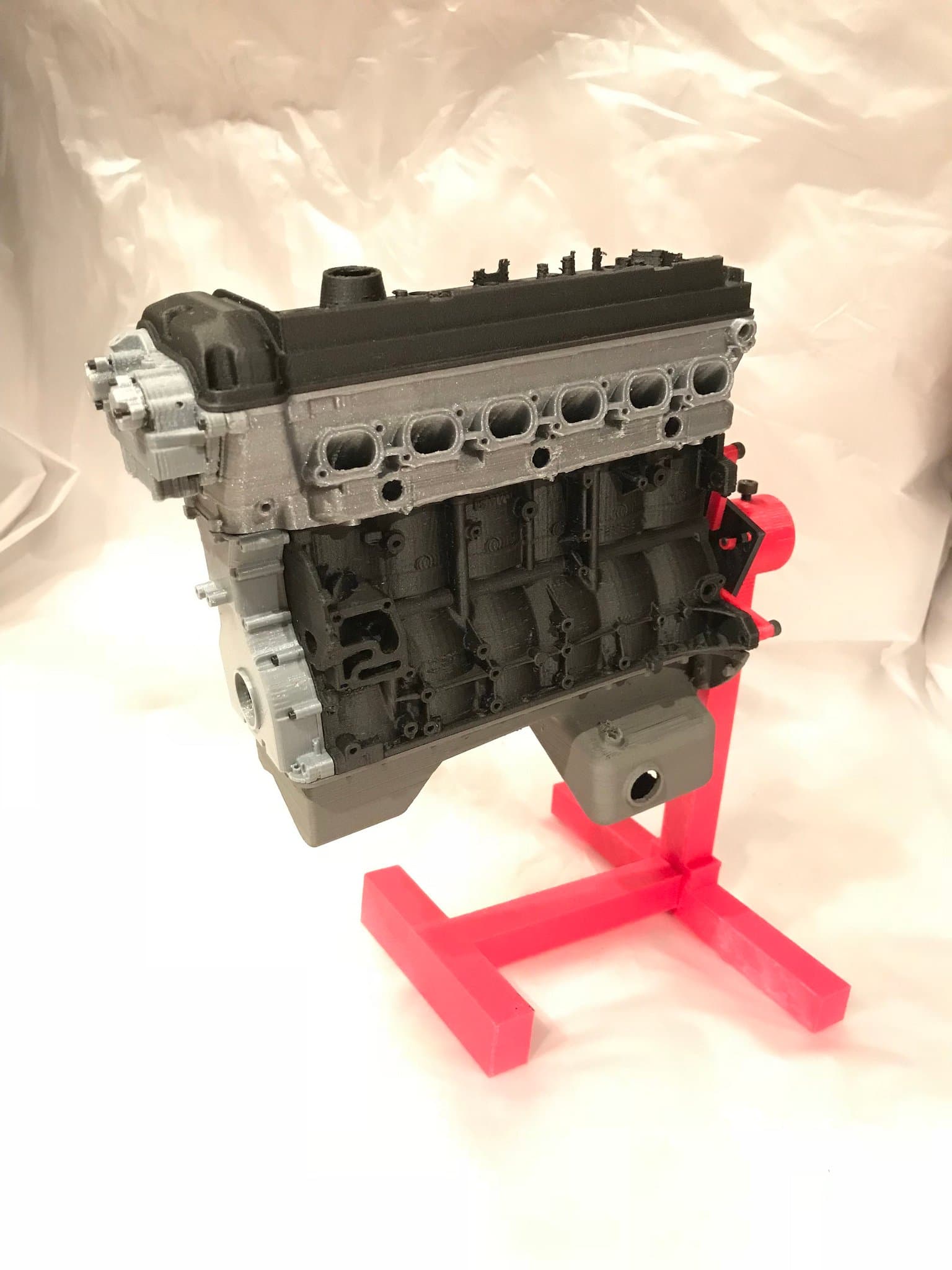

The pinnacle of the apex of the vortex of motorsports engineering - this is the BMW S54B32. For those unfamiliar the BMW S54 motor came in the E46 M3 (2000-2006), Z3 M Coupe/Convertible (2000-2002), and Z4 M Coupe/Convertible (2006-2008). It is a wolf in sheep's clothing, a high-strung race motor put into a road car chassis, and now its available for you to print! File includes .STL files for the S54 long block as well as the engine stand. The S54 files included are scaled at 100%. Simply scale down the engine parts to suit the size of your build platform, I printed at 25% (1:4). Engine stand is scaled at 1:4, so if you are printing at a larger scale do keep that in mind. Total print time on my printer was ~60 hours, so relatively speaking this is not a time consuming project. For some reason there is no photo preview of the cylinder head but it should still be included in the download of all the files, or you can find it under the "Thing Files" tab and download it that way.
