Chevrolet Bolt False Floor Bracket

0 downloads39 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

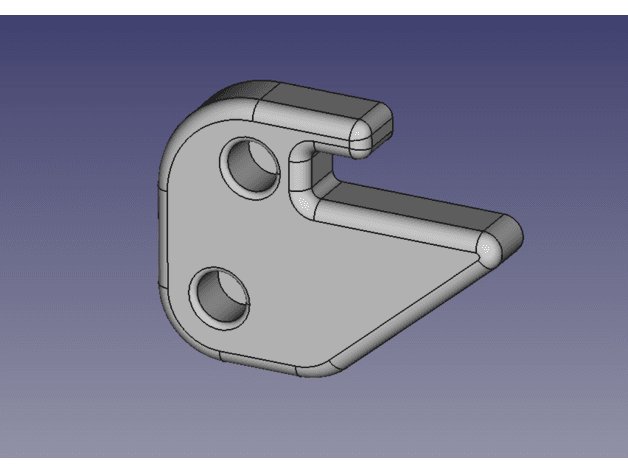

WIP Took some liberty with the bracket as the real one was designed for injection molding (I'm not mocking up useless draft angles) as well as the ability to lock the false floor in the 'UP' position which I've never used. The bolts that attach the bracket to the car appear to be M6x1 (6mm dia 1mm pitch) by 20mm in length. Hex head cap 10mm socket. No idea on print settings but the OEM one is basically hollow with a few infill-like braces molded into it. The OEM one also has provisions for rubber gommets to make it waterproof? Made no sense to me so they were omitted.
