Files (3)

Clutch_Adapter_v7.stl

STL

391.9 KB

Clutch_Adapter_v8_Clutch_Adapter_v8_Body1_.stl

STL

381.0 KB

Clutch_Adapter_v8_Clutch_Adapter_v8_ClutchPin_1_Body1_ClutchPin.stl

STL

55.6 KB

Print guidance estimate

Estimated from part metadata

Print cost & setup estimate

Planning numbers for filament, cost, time, and setup. Treat them as estimates until you confirm the file in your slicer.

3 model files

Typical selected file

46g

Based on 100% main infill for the largest likely-needed model file

Material cost

$1.10

Filament only at roughly $24/kg PETG / ASA

Print time

1.3h–2.2h

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 100%	100% solid	Recommendation
Clutch_Adapter_v7.stl	Printable file	391.9 KB STL	19g $0.46	46g $1.10	46g $1.10	Ensure a strong bond between layers for functional reliability
Clutch_Adapter_v8_Clutch_Adapter_v8_Body1_.stl	Printable file	381.0 KB STL	19g $0.46	46g $1.09	46g $1.09	Ensure a strong bond between layers for functional reliability
Clutch_Adapter_v8_Clutch_Adapter_v8_ClutchPin_1_Body1_ClutchPin.stl	Printable file	55.6 KB STL	10g $0.25	25g $0.60	25g $0.60	Ensure a strong bond between layers for functional reliability

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

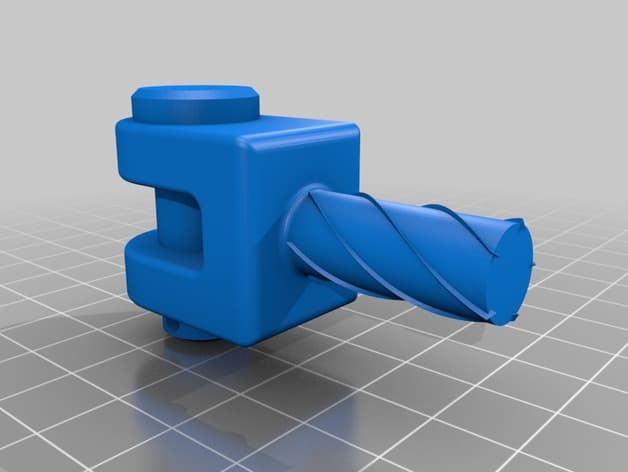

Clutch Master Cylinder Adapter

0 downloads25 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

Clutch adapter for a Jag S type mater Cylinder to allow a Bar to actuate it for a Kit Car. Print solid so it can be cross drilled for fixing to bar. Updated - Printed last night and the sizing is a bit off so reworked, Pin to tight and rod end to small for the rod I am using. Will re print and uplaod a new version.

Compatible Cars

Jaguar (all models)

Published Jun 27, 2026Updated Jul 15, 2026

Originally published on thingiverse.com by Andy Hill (mad4x4) · License: CC BY
