Coolant Reservoir Overflow for 2004 Dodge Ram 1500 5.7L

0 downloads40 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

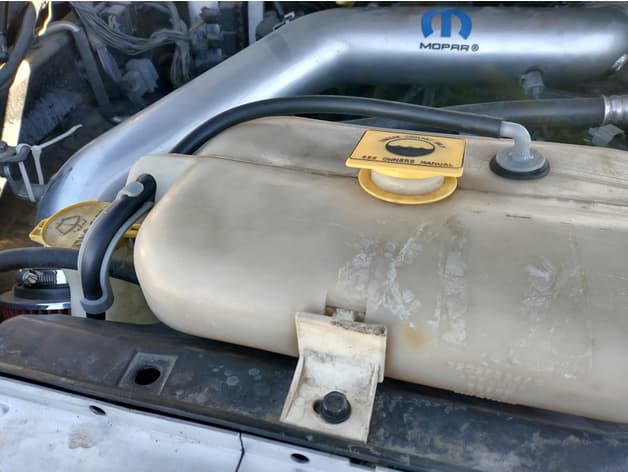

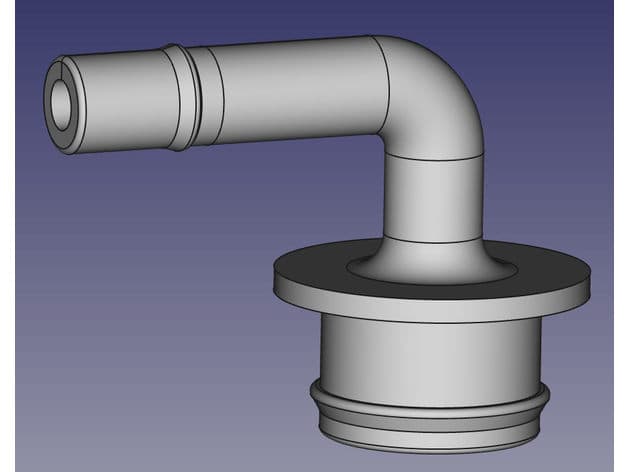

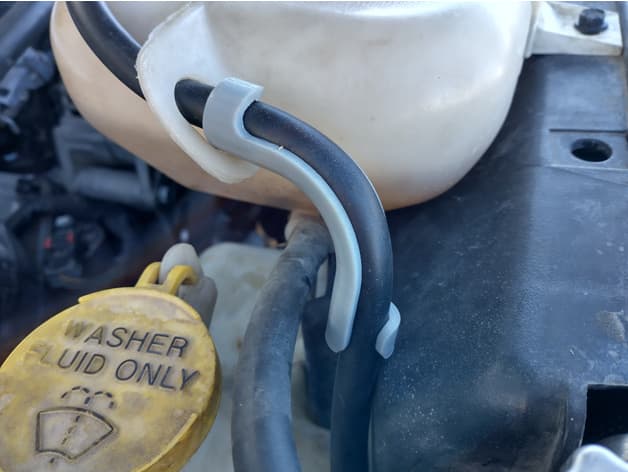

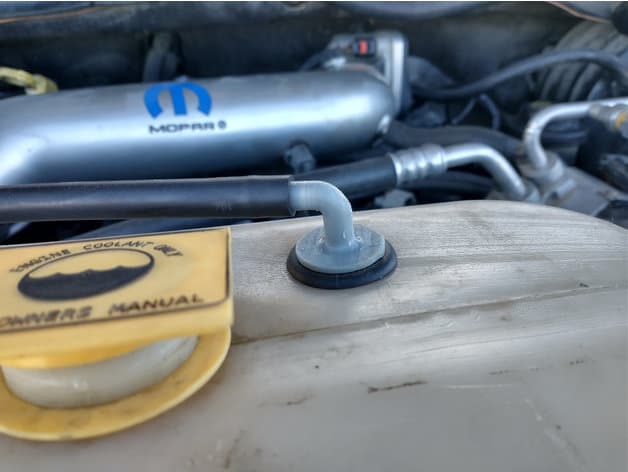

Coolant Reservoir Overflow for 2004 Dodge Ram 1500 5.7L Coolant Overflow Reservoir was missing the fitting for the overflow hose. Use this design + a 1" grommet from Harbor Freight (item #67582), and some 5/16 Radiator Overflow Hose from Autozone. The hole is a little bigger than 1", but the harbor freight grommets are cheap and easy to find. It seems to keep the coolant from spilling out. I have also included a "hose bender" design to facilitate a 90degree bend without cinching the hose.
