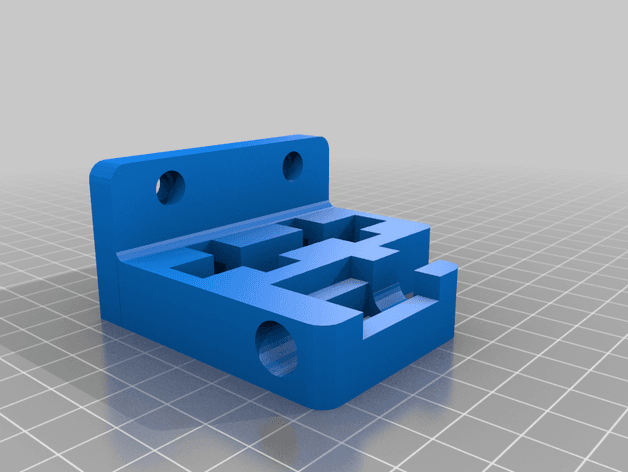

Dual Relay holder for Quad Spotlights for Mini R53 Cooper S - image

Files (1)

R53_Spotlight_Relay_Holder.stl

STL

65.3 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
R53_Spotlight_Relay_Holder.stl	Mount / bracket	65.3 KB STL	Slice file	Slice file	Slice file	Ensure proper orientation in the slicer to minimize supports

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

Dual Relay holder for Quad Spotlights for Mini R53 Cooper S

0 downloads30 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

I've just added a set of four spotlights to the front of my Cooper S R53. This requires two relays, one for each pair and a fuse. This is designed to have two relay sockets push in from underneath and a fuse holder in the front slot. The bracket will then bolt to the front bulkhead with two self tapping screws. Printed in PLA, 20% infill with no supports.
