Files (4)

Duct.stl

STL

153.1 KB

MAF_block_Bottom.stl

STL

40.1 KB

MAF_block_Top.stl

STL

49.3 KB

Mounting_Bracket.stl

STL

21.9 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

4 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Duct.stl	Printable file	153.1 KB STL	Slice file	Slice file	Slice file	Ensure proper orientation in the slicer to minimize supports
MAF_block_Bottom.stl	Printable file	40.1 KB STL	Slice file	Slice file	Slice file	Ensure proper orientation in the slicer to minimize supports
MAF_block_Top.stl	Printable file	49.3 KB STL	Slice file	Slice file	Slice file	Ensure proper orientation in the slicer to minimize supports
Mounting_Bracket.stl	Mount / bracket	21.9 KB STL	Slice file	Slice file	Slice file	Small functional file: print slowly; consider 80–100% infill for durability.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

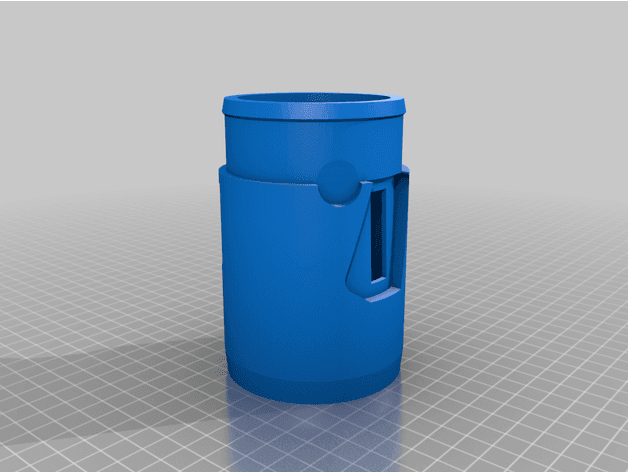

Fiesta ST Pod Filter Adapter

0 downloads31 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

Put a pod filter in your Fiesta and hear the succ. This adapter is designed for the UK/Australia variant of the Mk 7 Fiesta ST with the 1.6L EcoBoost engine. It might work on a US Fiesta, but don't be shocked if the car doesn't like it. Our cars don't like your intakes either and online stores here are flooded with them... Assembly will require some super glue. Use medium or gel types. You will likely need to tune your car with an appropriate stage 1 or 2 tune or you will get the service light popping up when you cruise at 80Km/h or more. This won't hurt your car, it's just the ECU complaining that it's getting slightly too much air. Your ECU will restrict the engine to a max boost of ~5psi until you restart the car. However my car doesn't really complain much with town driving and short bursts of acceleration, so you can at least have a bit of fun with it untuned or on a stage 1 tune that doesn't make use of an upgraded intake. Filters that I know that fit are the K&N RG-1001 and Supercheap Auto's Multi-fit Pod Filter, though they both are a bit long and only fit with some droop, so if you have a hard intake pipe, you might find those filters wont fit.
