Ford Focus Mk1 Zetec 1.6 gear lever cable bushing

0 downloads36 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

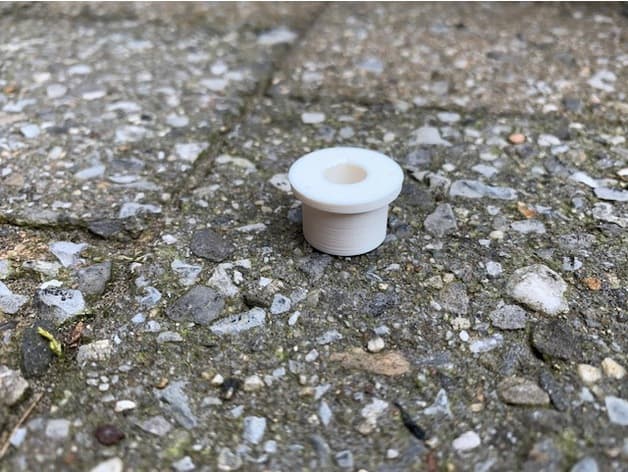

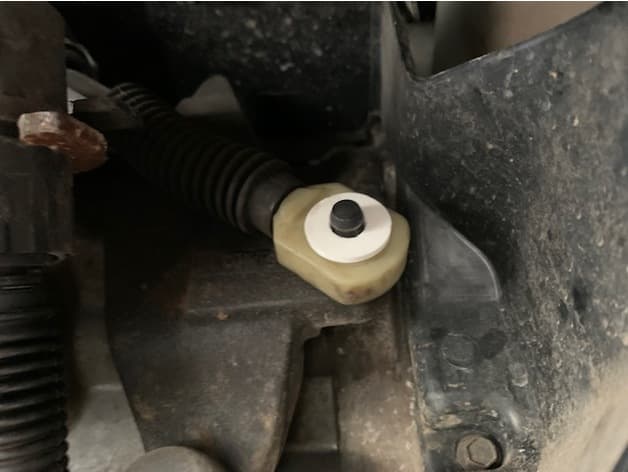

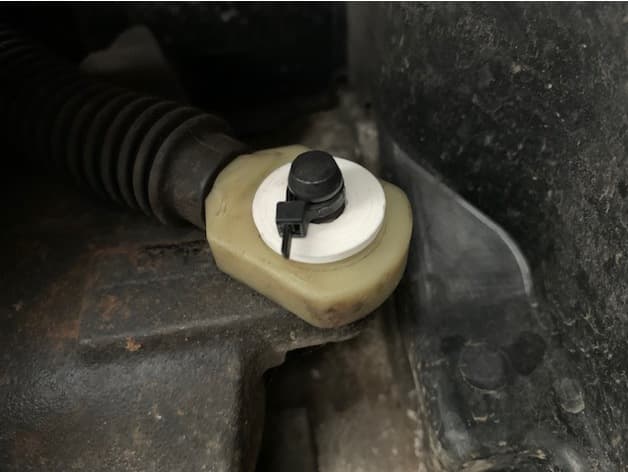

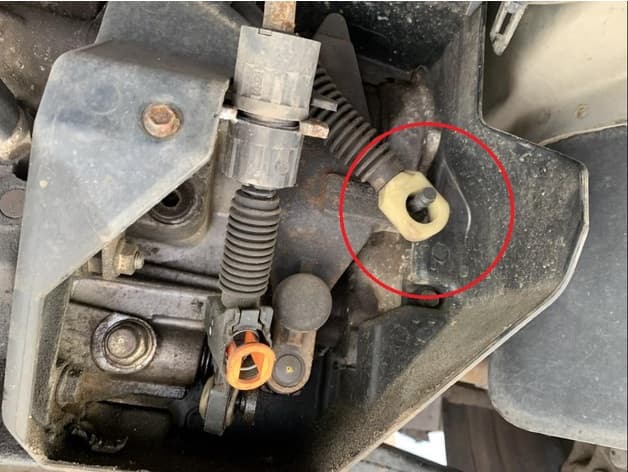

Small part to fill up the space of a missing gear lever cable bushing for Ford Focus Mk1 Zetec 1.6. It will probably fit a whole more load of car models but that's up to you to research. Obviously print it with 100% infill as it's a constructive part and it takes only 8 minutes to print. I used a zip-tie to prevent it from sliding off the gearbox (small chance that it would without it). Officially a metal C clip should be used to be sure that it will never come off unintended. Outer diameter = 16.125mm, inner diameter = 8.4375mm, height = 12.7mm I've also uploaded the scad file i've made this stl with, but i didn't spend time on actually making it configurable. The FN parameter is just the smoothness of the objects which has no use to adjust. I only uploaded it for backup purposes. If you download OpenSCAD you can tinker with the code.
