Files (2)
Based on 25% main infill for the largest likely-needed model file
Filament only at roughly $24/kg PETG / ASA
Uses 70 mm/s, 0.2 mm layers; verify supports in slicer
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| Headlight_Retainer_2.stl | Printable file | 95.0 KB STL | 12g $0.29 | 13g $0.31 | 29g $0.69 | Ensure proper orientation for optimal strength and minimal supports |
| Headlight_Retainer_Extra_Fingers.stl | Printable file | 107.6 KB STL | 13g $0.30 | 14g $0.33 | 30g $0.72 | Ensure proper orientation for optimal strength and minimal supports |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.
Ford Headlight Retainer
Shared by
3DPrintedCarPartDescription

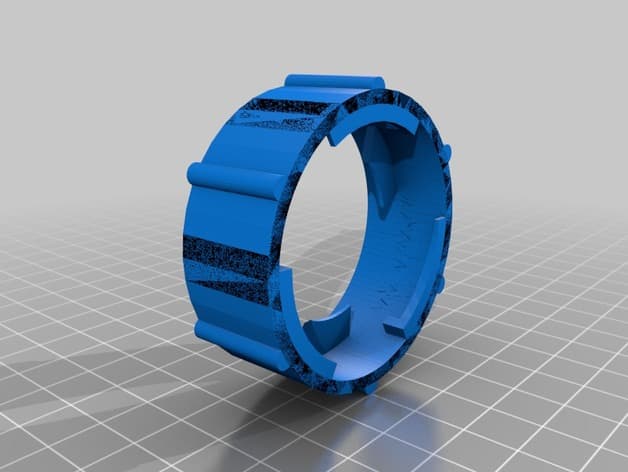

This is the part that secures your Ford's headlight to its housing assembly. There are three "fingers" that press down on the flanged edge of the bulb and keep it from moving. The actual replacement part can be found here: https://www.amazon.com/Ford-F4DZ-13N019-A-RETAINER-BULBS/dp/B000O0BGY0 You can use Amazon's "Filter by Vehicle" tool to check the fit on your car. I replaced my 2001 Explorer Sport Trac's headlights with LEDs (I HIGHLY recommend doing so, it makes a huge difference and made night time driving so much safer!) and, being that the thing is almost old enough to vote, the OEM plastic part broke when I took it off. I also included a second version of the clip, which has twice as many fingers for extra grip. Your headlights may or may not need them, it's up to you. Instead of paying $20 for a pair, I drew them up and printed them out instead. Much faster and cheaper that way. Part number I found is F4DZ-13N019-A, which apparently fits the following: 2000-2004 Ford F-150 1998-2011 Ford Crown Victoria 1997-2003 Ford Escort 2001-2003 Ford Explorer 2001-2005 Ford Explorer Sport Trac 2001-2011 Ford Ranger 2005-2007 Ford Focus 1996-1997 Ford Thunderbird 1994-1995 Ford Taurus Hope this helps someone else out. Enjoy!
Compatible Cars
Originally published on thingiverse.com by Jordan Murray (jomur123) · License: CC BY
