Ford IAC 1/8th NPT Adapter Plate

0 downloads26 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

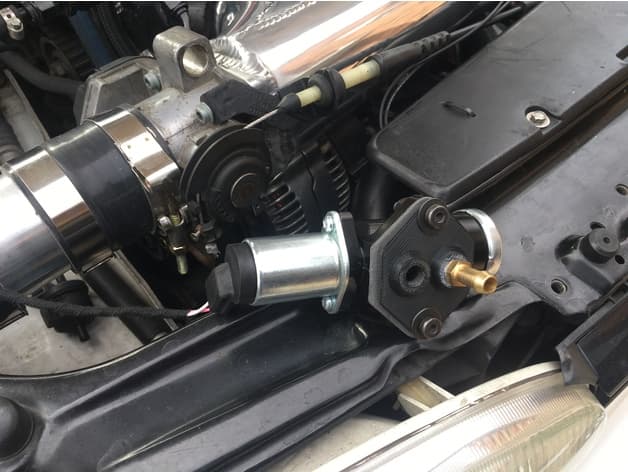

This is a quick design of a flange to fit on the early ford idle valves. It converts the port size to tappable 1/8th NPT holes for easy adaptability. Its not perfect, but it worked great for my project. I Printed using PLA at 195 C, with my heated bed at 60 C. I hope this helps some people out, or sparks more ideas for this idle valve. This valve is the perfect candidate for standalone tuning, which is where I incorporated it for my project.
