GMC window knob replacement
License & use
Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
AjM™ (Diesel_Dummy)Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.
Description

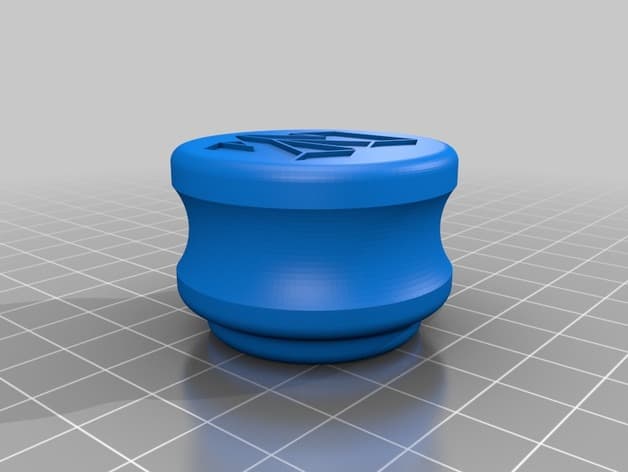

My work truck is a 2012 GMC 3500 with a 12' box attached. The knob for the window cranks on these vehicles are of piss-poor design and material. So i fixed it, no thanks to GM. The print is one piece and utilizes a "captive nut" system. I designed it to not need any supports. All you do is print the knob face down (design side down), pause the print after printing the 11.00mm layer, insert the nut (nylon side down) and resume printing. Hardware needed other than printed part: - one of a 5/16" x 1.25" bolt (coarse thread, 18 TPI) - one of a 5/16" flat washer - one of a 5/16" nylon lock nut (coarse thread, 18 TPI) I've used this as a replacement knob in my 2012 GMC and in a coworkers 2006 GMC. I've been told it will fit on any GMC/Chevy van or truck from 2003-2018, if anyone can confirm or refute please leave a comment and I will keep the description updated.
Originally published on thingiverse.com by AjM™ (Diesel_Dummy) · License: CC BY-NC
