Golf 5 In-Dash Tablet (Nexus 7)

0 downloads44 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

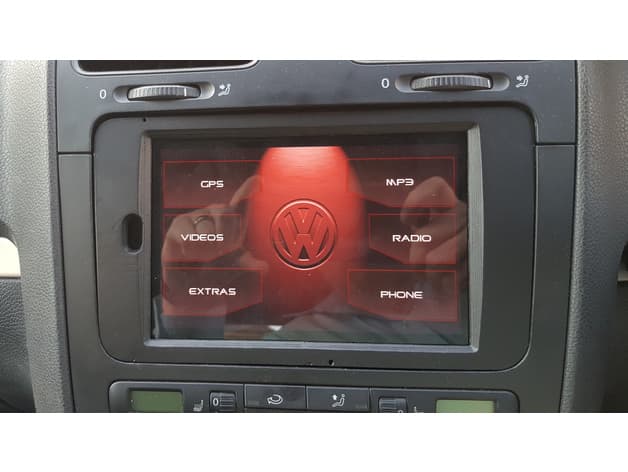

In-Dash bracket for a Nexus 7 (2012) Designed as full bracket with slot on the side for removal of tablet. Also as separate part that can be glued to each other for printers that cannot handle any overhang. *NOTE*: this is an in-dashboard replacement for the Volkswagen RCD 3xx or RCD 5xx radio. _This is still a work in process_. Part of Project Bragi (https://www.facebook.com/ProjectBragi) UPDATE - 20 Aug 2014: First version. Possible reversed surfaces. Please check before printing UPDATE - 3 Feb 2015: Major changes have been made to the bracket. *Please note*: Check the dates on the files when downloading. Have also uploade the SketchUp if you want to make changes yourself.
