Files (1)

sonataDashClip.STL

STL

13.6 KB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

50g

Based on 40% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg ABS / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	ABS / ASA 20%	ABS / ASA 40%	100% solid	Recommendation
sonataDashClip.STL	Clip	13.6 KB STL	37g $0.89	50g $1.20	88g $2.12	Small functional file: print slowly; consider 80–100% infill for durability.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Accessories

Hyundai Sonata Dash Trim Clip

0 downloads177 views0 likes

Shared by

Michael Chen

Verified

Description

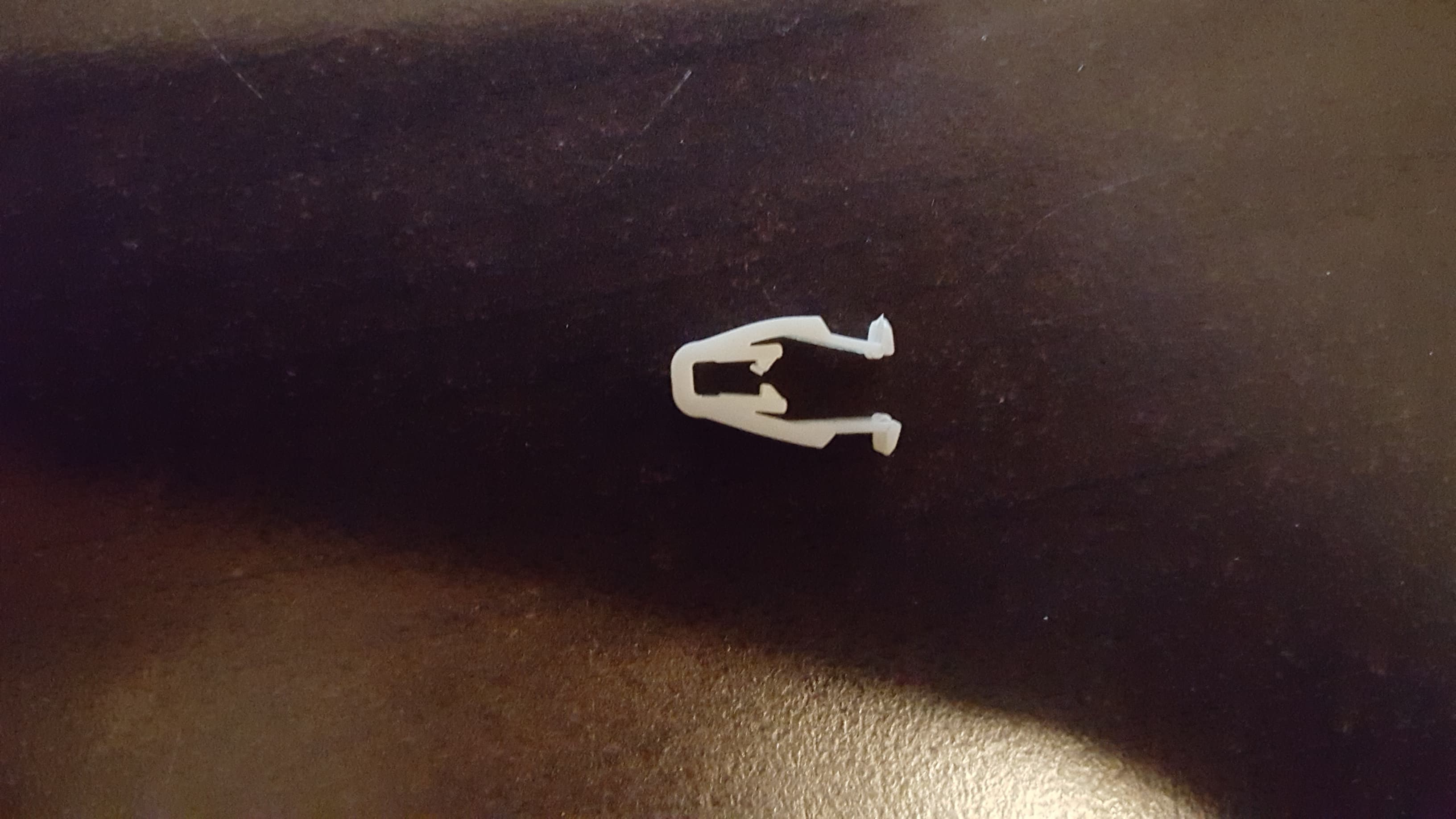

I recently swapped out the radio in my 2006 Hyundai Sonata, and in the process I discovered that there are a bunch of clips that hold the dash trim in place. These clips seem to have a tendency to get lost inside the vehicle, so I made a rough replacement part. I ended up using several when I was putting everything back together, they seem to work well enough although I believe they make for a slightly tighter fit than the original clips. Hopefully these come in handy for someone else! From what I can gather these clips are used on Hyundai vehicles from other years and in other models too - so maybe someone else will be after one someday. I'd recommend printing with a small nozzle - 0.4mm or below. I printed mine with a 0.8mm nozzle, and they didn't exactly come out pretty - but they did work, so close enough. Smaller nozzle is better, as these are pretty small parts. I'd recommend ABS, as you want these parts to have a decent amount of give before breaking.
