Hyundai Sonata Tweeter Replacement Blank

0 downloads182 views0 likes

Shared by

Michael Chen

Verified

Description

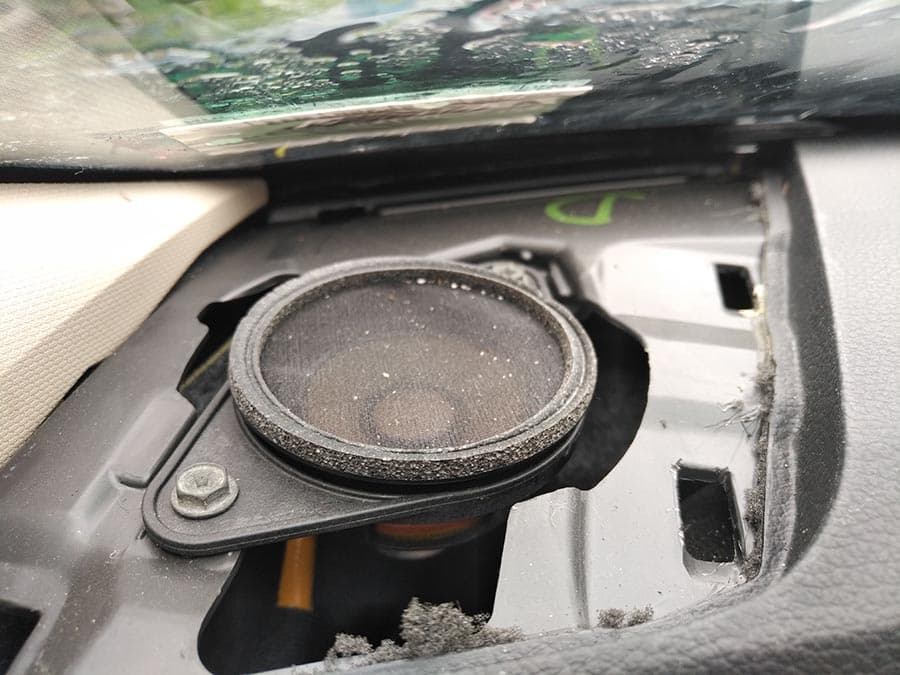

The base model Hyundai Sonata has a sound system that leaves a bit to be desired. Most annoyingly, the vehicle has no tweeters but instead points a "full range" driver at the windshield. This plate allows for replacement of the driver with a component tweeter of your choosing. Print the parts and drill a hole appropriate for the flush-mount hardware that came with your tweeter set. If you prefer to print the part with the hole already in it, feel free to use my original OnShape model and re-size the hole. (Change the #Opening_Diameter variable to the diameter of the opening of your flush-mount adapter then export each of the two parts.) These brackets don't have to support a lot of weight so PLA is fine. If you are concerned about strength or heat resistance, use a Nylon or ABS filament instead. A panel tool and protective cloth.
