Kia Picanto JA Rear Speaker Bracket - image

Files (1)

PicantoRearSpeakerBracket.stl

STL

197.7 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
PicantoRearSpeakerBracket.stl	Mount / bracket	197.7 KB STL	Slice file	Slice file	Slice file	Ensure proper orientation in the slicer for optimal printing

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Door Panels

Kia Picanto JA Rear Speaker Bracket

0 downloads191 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

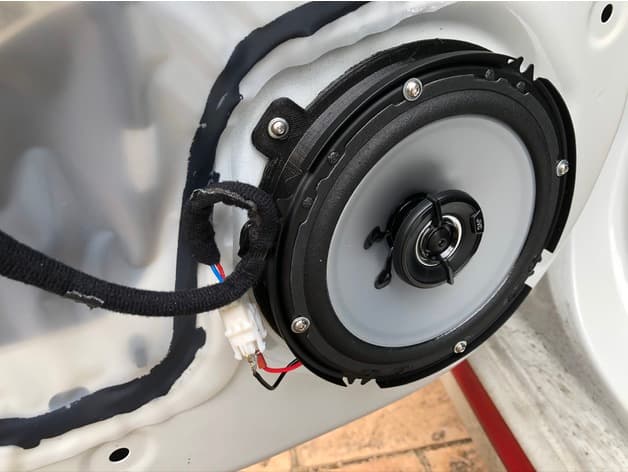

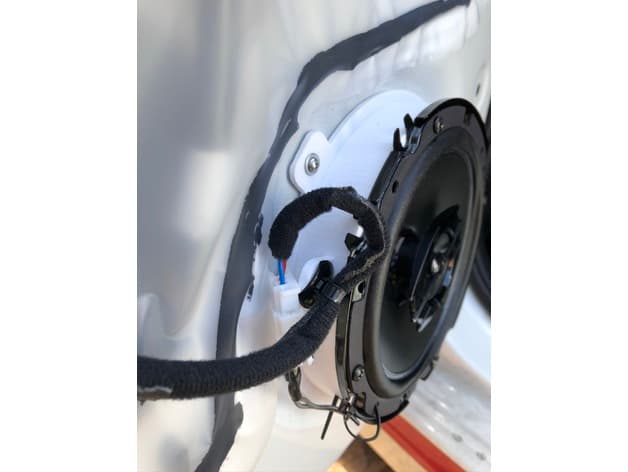

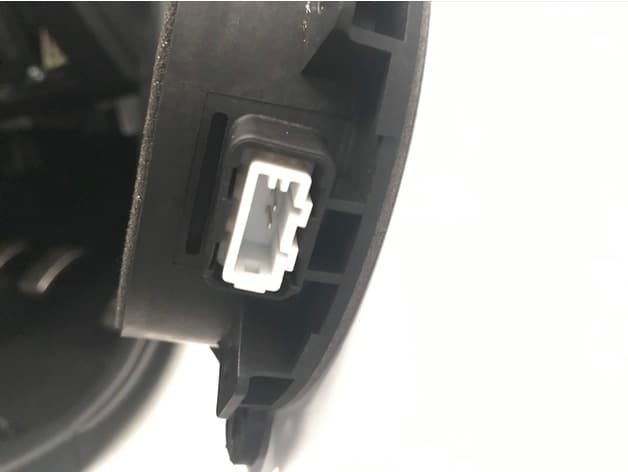

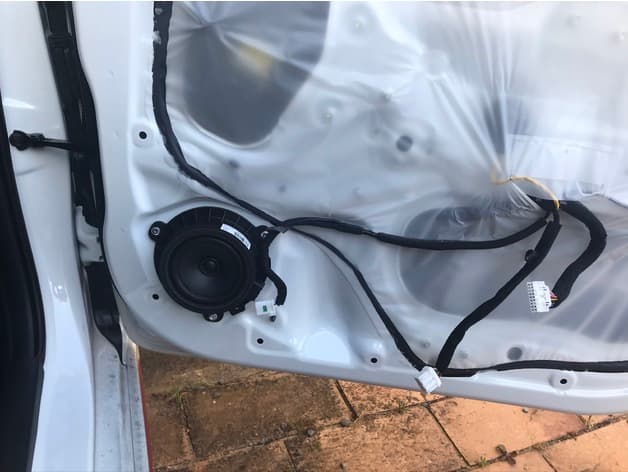

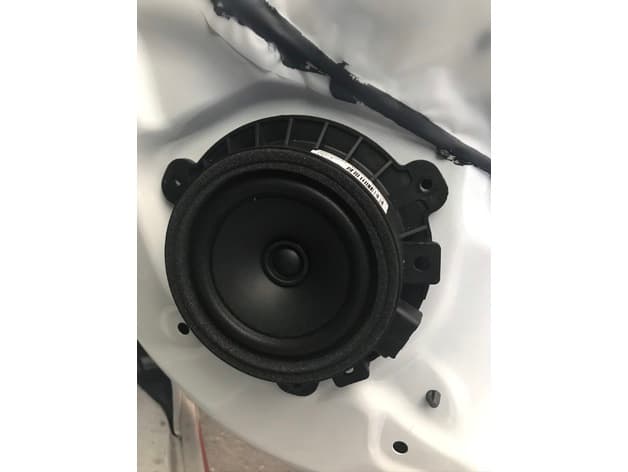

This is a speaker bracket to allow larger 6.5" speakers to be mounted to the rear doors of a 2018+ Kia Picanto. It was designed for a Picanto GT, but should fit other variants. The bracket has 4 holes for speaker mounting, a tab to fit the connector clip, and three holes for mounting to the door. The original bracket is riveted to the door, so a fair bit of work is required to drill them out and then install rivnuts/nutserts to mount the new bracket. I used M3 rivnuts as they fit the holes without drilling into the door. M3 is strong enough to support the speaker.
