LaCrosse to Insignia Cluster Frame - image

Files (3)

22020823-01_v25.stl

STL

568.7 KB

trace1-model1-bottompad-360.stl

STL

190.9 KB

trace1-model1-toppad-360.stl

STL

46.3 KB

Print guidance estimate

Estimated from part metadata

Print cost & setup estimate

Planning numbers for filament, cost, time, and setup. Treat them as estimates until you confirm the file in your slicer.

3 model files

Recommended kit

51g

Based on 25% main infill across listed model files

Material cost

$1.23

Filament only at roughly $24/kg PETG / ASA

Print time

1.5h–2.4h

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
22020823-01_v25.stl	Printable file	568.7 KB STL	22g $0.53	24g $0.58	53g $1.27	Print the provided frame part and mirror it to create the second part
trace1-model1-bottompad-360.stl	Printable file	190.9 KB STL	15g $0.36	16g $0.39	36g $0.86	Print the provided frame part and mirror it to create the second part
trace1-model1-toppad-360.stl	Printable file	46.3 KB STL	10g $0.24	11g $0.26	24g $0.57	Print the provided frame part and mirror it to create the second part

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Dashboard

LaCrosse to Insignia Cluster Frame

0 downloads47 views0 likes

Shared by

Alfred

Verified

Description

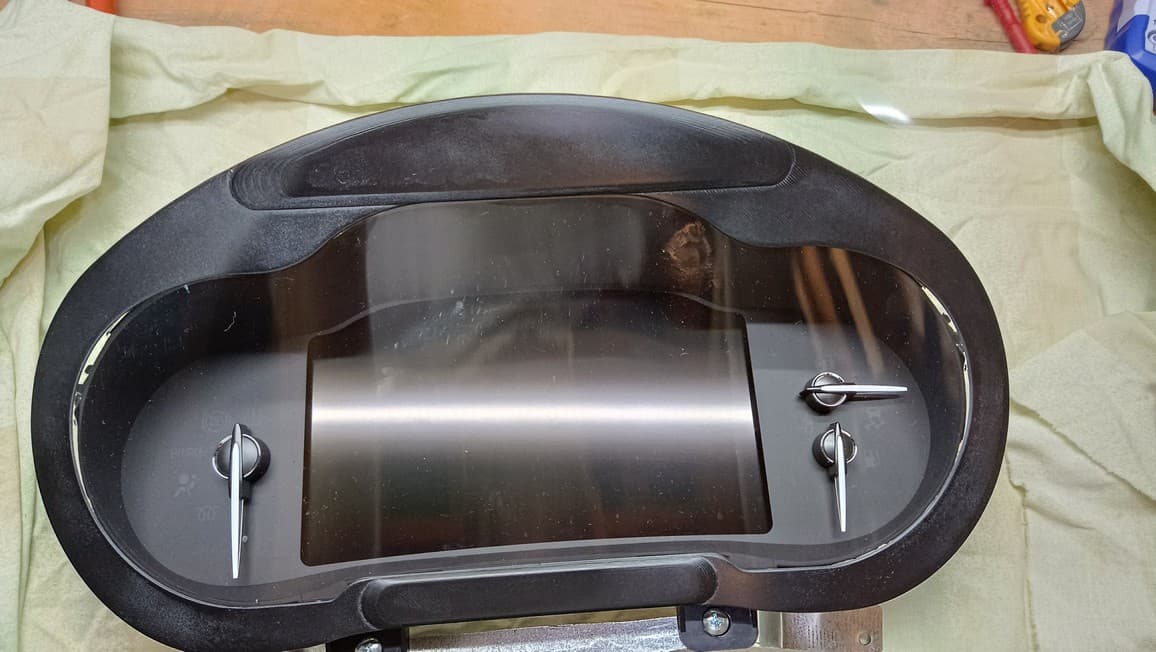

This is an instrument cluster frame for those, who install the cluster from Buick LaCrosse to Opel Insignia A. I installed full-screen colorful LaCrosse cluster instead of my default monochrome Opel cluster. While it is quite easy to connect electric wires, new cluster doesn't fit bolt-on to Insignia. You have to cut some useless parts from new cluster and cover gap with my frame. The frame is constructed from 4 parts: left and right main frames. I provided only one side, just mirror to print another side. Place parts face to table - it allows to print without supports. Glue both parts together, then glue top and bottom bars to make the frame more strong. Use polishing and painting to taste. Use thin 6mm double-side adhesive tape between instrument cluster and frame.
