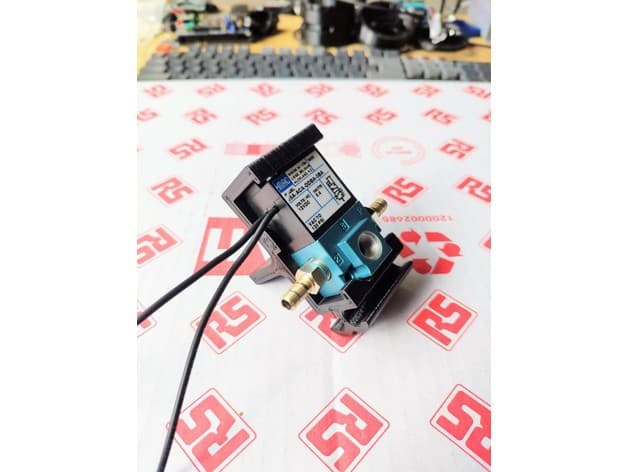

MAC boost control solenoid bracket - MX5 Miata - image

Files (1)

MAC_boost_control_solenoid_bracket__016.stl

STL

501.4 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	ASA / a similar high-heat tolerant material 20%	ASA / a similar high-heat tolerant material 40%	100% solid	Recommendation
MAC_boost_control_solenoid_bracket__016.stl	Mount / bracket	501.4 KB STL	Slice file	Slice file	Slice file	Print with the flat side down to minimize supports

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

MAC boost control solenoid bracket - MX5 Miata

0 downloads35 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

3D printable bracket for a MAC boost control solenoid. It holds the solenoid VERY tightly, you'll need some strong fingers to get it in/out. Must be printed in a high heat tolerant filament, at least ASA (as pictured). It was designed to mount to one of the m6 fuse/relay box studs on a NB MX5 Miata (RHD), but might fit in other cars, feel free to modify the bracket for other mounting points. Just make sure it can withstand the heat in that area of the engine bay. Has integrated clips at the bottom to hold 7mm & 8mm OD vacuum hose, to help prevent kinking on one side. No supports necessary, if you orient it flat side down (left side).
