Files (1)

cold_air_intake_arm_2.stl

STL

143.3 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
cold_air_intake_arm_2.stl	Primary model	143.3 KB STL	Slice file	Slice file	Slice file	Ensure the print bed is level and clean for optimal adhesion

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

NA Miata filter arm

0 downloads49 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

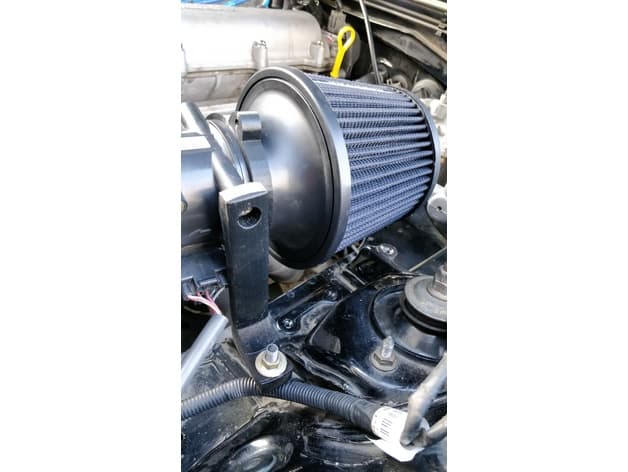

This is a support arm for my 94 Miata (1.8L) after I upgraded to a cone intake to get rid of the airbox wheezing. It attaches to one of the original mounting points from the airbox. The AFM is turned upside-down with a 25° offset to not interfere with the plug and the stock bolt will work to attach. Print in a temperature resistant material like PETG.
