Subaru Forester SH 2009-2012 Front Centre console storage pocket door and tray

0 downloads47 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

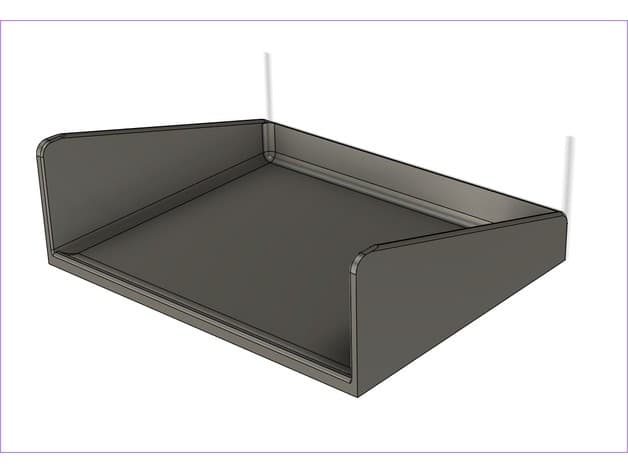

Subaru Forester SH 2009-12 To fit the large storage hole in the front centre dash area (below the heater controls)> I found I didn't like putting anything in there as it was always on "show" for potential thieves etc. So the idea was to have a small cubby hole with door, and then a small tray above (tray fits next to the 12v socket above the door/frame.) Works ok, is reasonable "neat" - fix in place using (a large amount of) double sided foam trim tape. PETG or ABS preferred due to heat in cars may warp PLA, but I have had success with PLA in cars, as long as not in direct light etc (which this is not). First attempt so could be improved. Dry fit and measure the position first, the frame needs to be in place first so measure vs the tray. 1mm x 6mm magnets in the lid/frame. 2mm (M2) bolts in the hinges of the lid. Feel free to modify or improve.
