Tesla Charger Support

0 downloads29 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

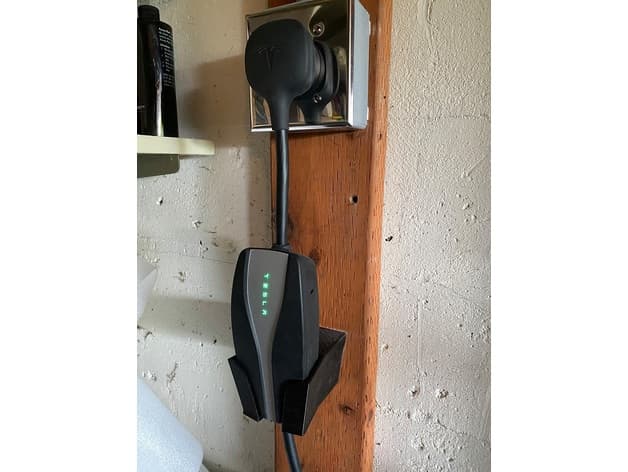

This is a support holder for a Tesla mobile charger. By taking the weight of the charger, less strain is placed on the plug and outlet. There are two stl files. The original one that I used is designed to hold the charger straight down assuming the outlet is in an external electrical box (about 1 7/8" thick). The other support, ChargerSupportFlush, should be used if your outlet is flush mounted in the wall. In this case I removed about 1 7/8" material from the back of the support. On my printer it took around 6 hours to print. The flush mount will print faster since a lot less material. Probably more robust than it needs to be but nice to have something solid on the garage wall that is not likely to break when something bumps into it. Designed with Fusion 360.
