Tesla J1772 Charger Adapter Lock - Universal (S 3 X Y w/ flange!)

0 downloads22 views0 likes

Download at source

Shared by

3DPrintedCarPart

Verified

Description

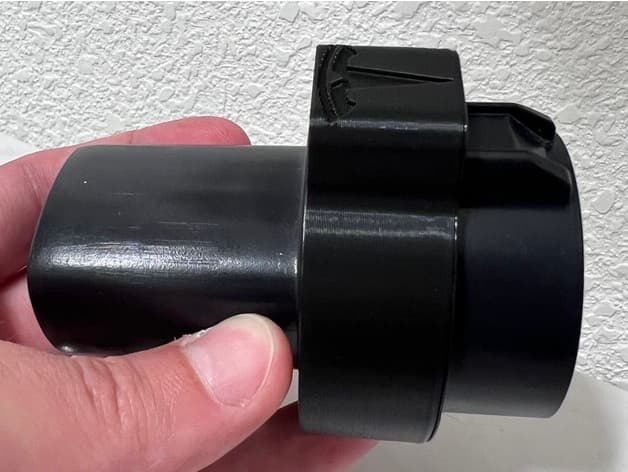

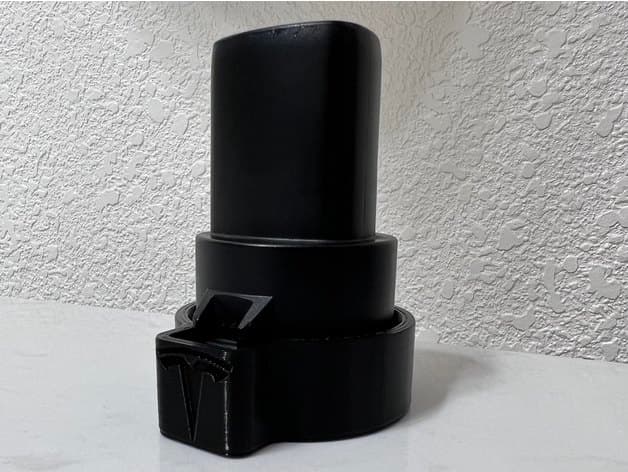

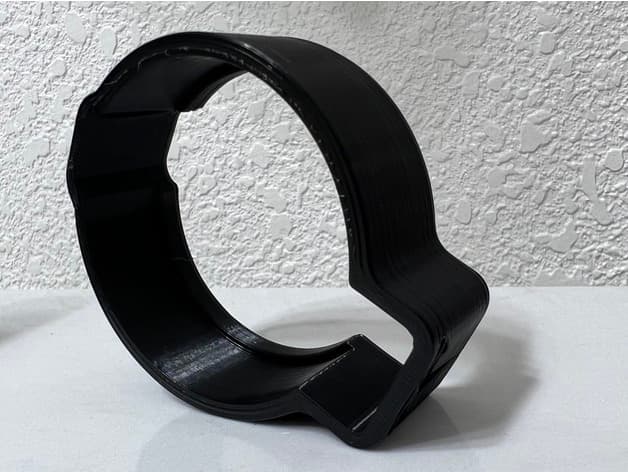

Works with Model S / X adapter with the flange! Haven't seen a design for the flange yet, and was requested to make one. I ended up with a universal design that works for both adapter styles. Usage is slightly different with the flange adapter, see the steps image. First slide on adapter all the way back, then plug in J1772 charger, then slide back into position and plug into car. As a bonus, you can rotate it and leave attached securely to the adapter (only works with flange). Also works with Model 3 / Y, though my earlier design uses less material and is just as effective. This is an original design and is not permitted for commercial sales without explicit permission. I may sell on Etsy soon.
