STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Nut_M32.stl	Printable file	15.0 MB STL	Slice file	Slice file	Slice file	Ensure a strong adhesion to the build plate to prevent warping
Tesla_Wall_Box_M32_to_G1.25.stl	Printable file	45.9 MB STL	Slice file	Slice file	Slice file	Ensure a strong adhesion to the build plate to prevent warping

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

Tesla Wall Box Adapter G3/4

0 downloads33 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

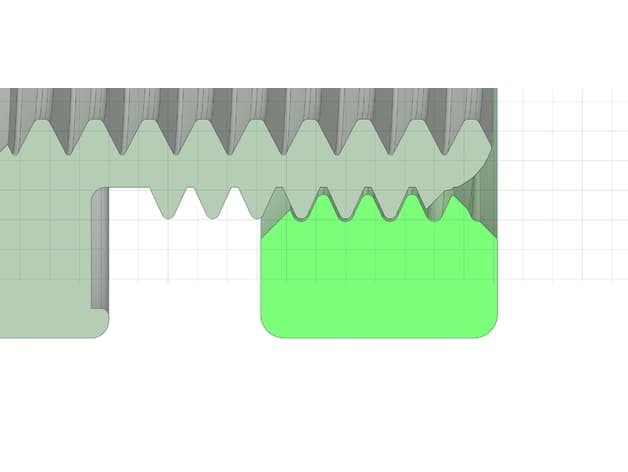

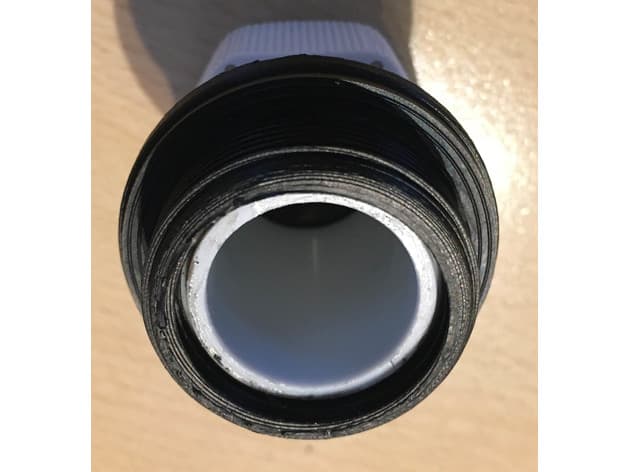

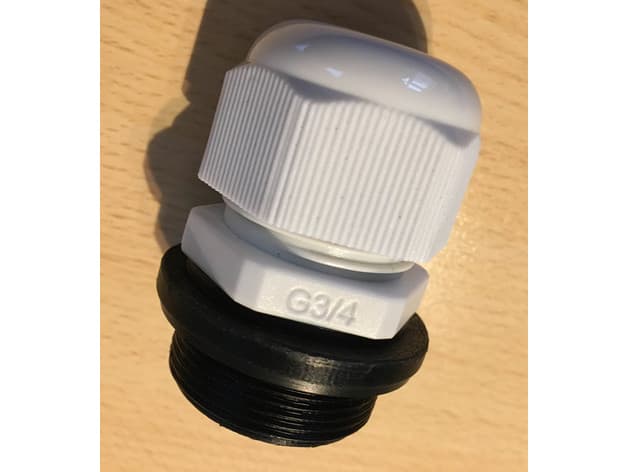

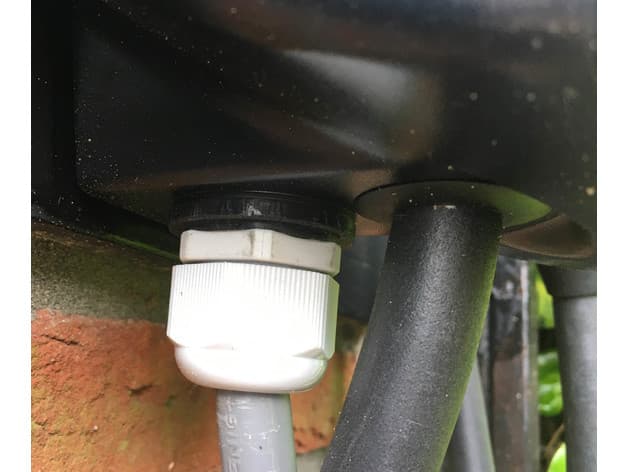

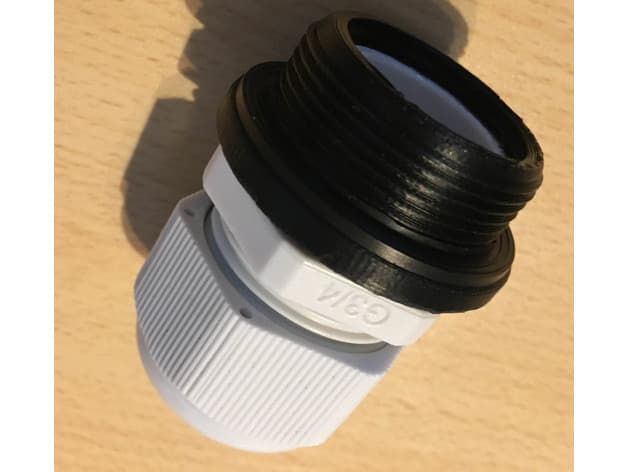

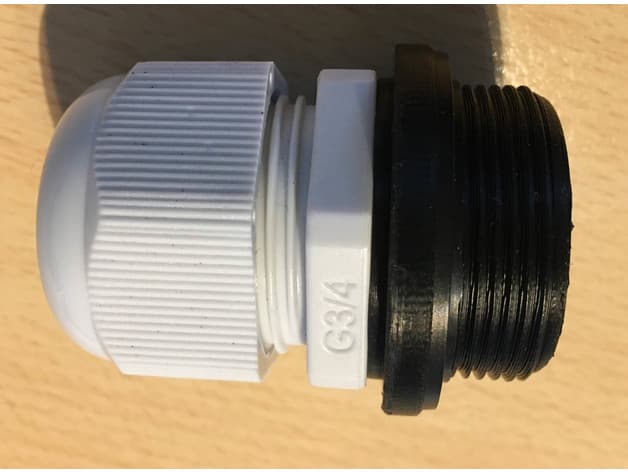

The Tesla Wall Box is delivered with a large gaping hole where the cable is to be mounted. The tread in this hole is M32x1.5 and I did not have a cable gland for this large diameter. Luckily I had some G3/4 cable glands and a 3D printer… So I designed this adapter from M32x1.5 to G3/4. The gap should be sufficient to create a fine fit. Sealing kan be done with the original rubber gasket or an O-ring. Some teflon tape will also work fine.
