← Back to Browse Parts
MC Showing 6 of up to 60
Files (30)
Front_bearing_retainer_-_Scaled.stl
STL
492.8 KBShifter_base_-_Scaled.stl
STL
95.5 KBGear_1_Counter_Shaft_-_Scaled.stl
STL
744.2 KBBell_Housing_-_Scaled.stl
STL
4.9 MBOutput_shaft_-_Scaled.stl
STL
178.0 KBGear_2_Counter_shaft_-_Scaled.stl
STL
580.2 KBShift_collar_gear_-_Scaled.stl
STL
69.1 KBInput_Shaft_-_Scaled.stl
STL
171.5 KBGear_3_Top_-_Scaled.stl
STL
1018.0 KBPressure_Plate_-_Scaled.stl
STL
330.7 KBGear_3_Counter_shaft_-_Scaled.stl
STL
676.1 KBShift_collar_gear_-_5th_-_Scaled.stl
STL
88.3 KBShifter_base_2_-_Scaled.stl
STL
365.3 KBGear_4_Counter_shaft_-_Scaled.stl
STL
647.4 KBGear_5_Counter_shaft_-_Scaled.stl
STL
984.5 KBShift_Collar_-_Scaled.stl
STL
194.2 KBGear_4_Top_-_Scaled.stl
STL
1006.3 KBTransmission_housing_2_bearing_retainer_-_Sclaed.stl
STL
93.2 KBGear_5_Top_-_Scaled.stl
STL
542.6 KB2_shift_fork_-_Scaled.stl
STL
34.0 KBShifter_base_1_-_Scaled.stl
STL
413.1 KB4_shift_fork_2_-_Scaled.stl
STL
40.2 KBGear_2_Top_-_Sclaed.stl
STL
1009.1 KBShifter_ball_bottom_-_Scaled.stl
STL
200.8 KBReverse_idler_-_Scaled.stl
STL
81.1 KBR_shift_fork_-_Sclaed.stl
STL
429.2 KBGear_1_Top_-_Scaled.stl
STL
932.6 KBShifter_ball_top_-_Scaled.stl
STL
169.5 KB5th_gear_Shift_collar_-_Scaled.stl
STL
157.7 KBReverse_Gear_-_Scaled.stl
STL
164.7 KBPrint guidance estimate
Uses saved filament metadata
Print cost & setup estimate
Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.
30 model files
Recommended kit
50g
Based on 25% main infill across listed model files
Material cost
$1.20
Filament only at roughly $24/kg PETG / ASA
Print time
2.0h saved / 1.4h–2.4h estimate
Uses 70 mm/s, 0.2 mm layers; verify supports in slicer
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| Front_bearing_retainer_-_Scaled.stl | Printable file | 492.8 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Shifter_base_-_Scaled.stl | Printable file | 95.5 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_1_Counter_Shaft_-_Scaled.stl | Printable file | 744.2 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Bell_Housing_-_Scaled.stl | Printable file | 4.9 MB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Output_shaft_-_Scaled.stl | Printable file | 178.0 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_2_Counter_shaft_-_Scaled.stl | Printable file | 580.2 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Shift_collar_gear_-_Scaled.stl | Printable file | 69.1 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Input_Shaft_-_Scaled.stl | Printable file | 171.5 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_3_Top_-_Scaled.stl | Printable file | 1018.0 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Pressure_Plate_-_Scaled.stl | Printable file | 330.7 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_3_Counter_shaft_-_Scaled.stl | Printable file | 676.1 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Shift_collar_gear_-_5th_-_Scaled.stl | Printable file | 88.3 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Shifter_base_2_-_Scaled.stl | Printable file | 365.3 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_4_Counter_shaft_-_Scaled.stl | Printable file | 647.4 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_5_Counter_shaft_-_Scaled.stl | Printable file | 984.5 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Shift_Collar_-_Scaled.stl | Printable file | 194.2 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_4_Top_-_Scaled.stl | Printable file | 1006.3 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Transmission_housing_2_bearing_retainer_-_Sclaed.stl | Printable file | 93.2 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_5_Top_-_Scaled.stl | Printable file | 542.6 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| 2_shift_fork_-_Scaled.stl | Printable file | 34.0 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Shifter_base_1_-_Scaled.stl | Printable file | 413.1 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| 4_shift_fork_2_-_Scaled.stl | Printable file | 40.2 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_2_Top_-_Sclaed.stl | Printable file | 1009.1 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Shifter_ball_bottom_-_Scaled.stl | Printable file | 200.8 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Reverse_idler_-_Scaled.stl | Printable file | 81.1 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| R_shift_fork_-_Sclaed.stl | Printable file | 429.2 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Gear_1_Top_-_Scaled.stl | Printable file | 932.6 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Shifter_ball_top_-_Scaled.stl | Printable file | 169.5 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| 5th_gear_Shift_collar_-_Scaled.stl | Printable file | 157.7 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
| Reverse_Gear_-_Scaled.stl | Printable file | 164.7 KB STL | Slice file | Slice file | Slice file | Ensure proper orientation for minimal supports |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.
Accessories

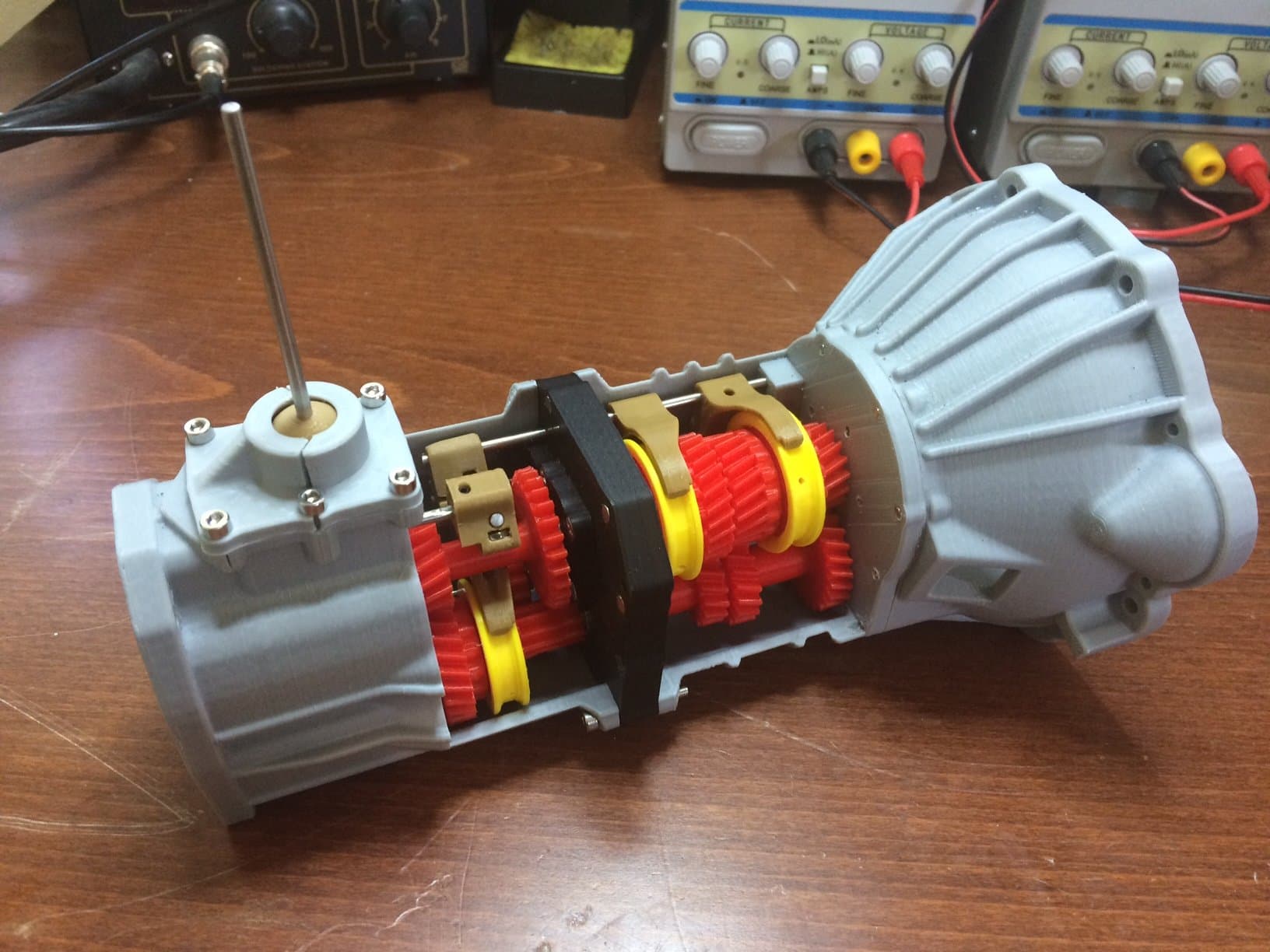

Working 5 speed transmission model for Toyota 22RE engine
0 downloads165 views0 likes
Shared by
Michael ChenVerified
Description

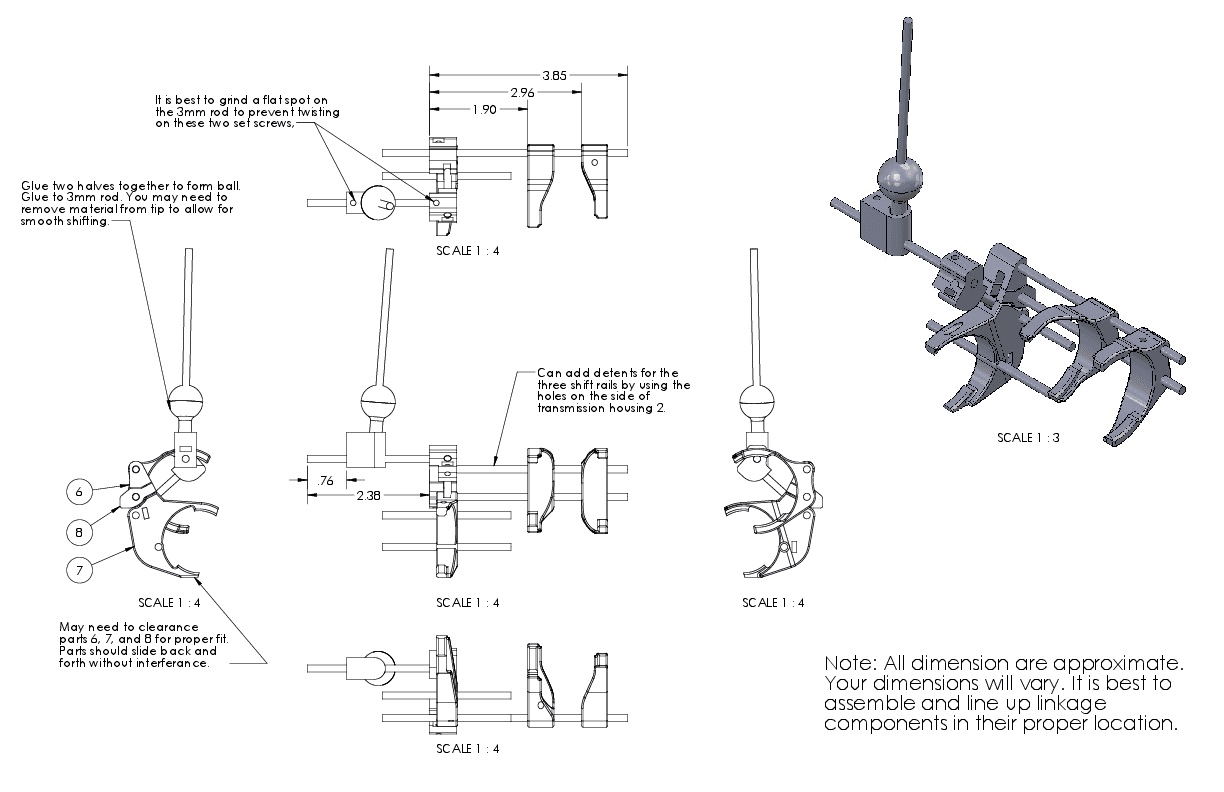

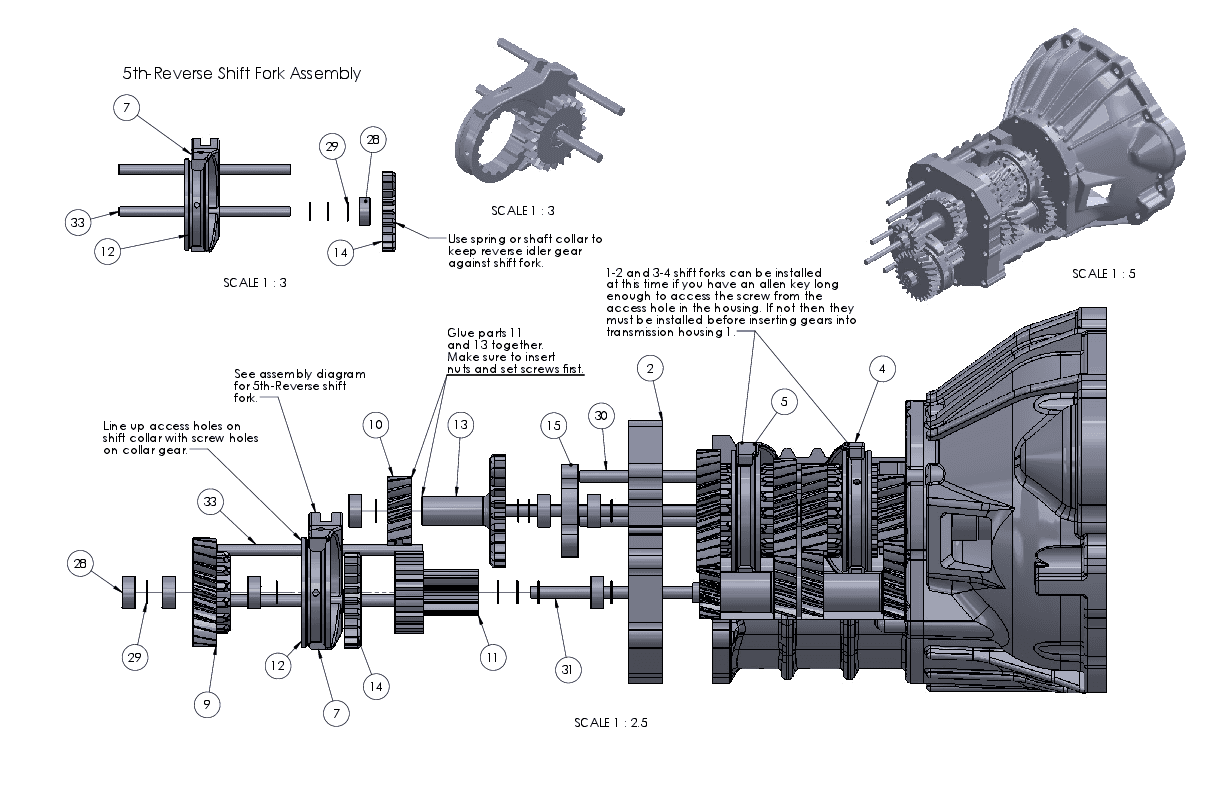

All my models are printed on a Prusa i3 kit. You can find the one I use by clicking the link below. You can get 15% off by using code "GBTE" This is the 5 speed transmission that comes bolted to the back of a 22RE. This is the 4WD version of the transmission so it has a mounting surface to bolt a transfer case to. The transfer case will be the next thing I will upload Fully working. All 5 speeds plus reverse. It uses a good amount of 3mm rod and 623zz bearings. M2.5 x 5mm set screws and nuts were used due to the small size of some of the parts. Shift linkage.stl file updated for more clearance. The old one will still work you just might have to modify it, Transmission housing cover 1 had a problem with the source file not laying flat. New file has been uploaded.
Print Settings
Time: 2h
Filament: 50g
Supports: Not needed
Compatible Cars
Published Feb 23, 2026Updated Jul 15, 2026
Originally published on thingiverse.com · License: CC BY
Verified by drivers
Share whether this print actually fits a real car. Installed photos and material notes make the catalog more trustworthy.
Loading fitment proof…
Sign in to share fitment proof, installed photos, and material notes.
