Center Console

2019 Dodge Ram switch console

0 downloads50 views0 likes

Shared by

3DPrintedCarPart

Verified

Description

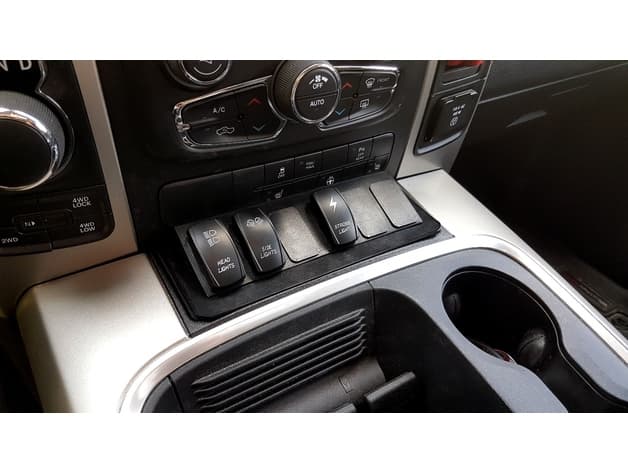

This is a console to hold 6 standard toggle switches that can be found in places like eBay to control lighting or whatever. The ones I ordered were from eBay: https://www.ebay.ca/itm/12V-20A-Blue-LED-Car-Boat-Push-Button-Rocker-Switch-4x4-for-ARB-Carling-Style/223533670899 I made this for a 2019 Dodge Ram 1500 Warlock edition, but will likely fit many others. The idea was to have the switches within easy reach, require no modifications to the console and be easily removed without a trace if necessary. It sits in the little space under the climate controls (see pic) and is a (very light) pressure fit. It relies on the rubber molded 'cup' that sits in the space to hold it in place. Wires are easily run to it and if connectors are used, can easily be removed without effort. Running the wires requires only removing 3 screws to lift out the center console. Printed it in PLA, but considering a reprint to PETG if the summer heat becomes an issue (will advise). Blank model is included to cover up any holes that are unused.
