Audi B5 S4 Front Speaker Bracket / Adapter - image

Files (2)

B5_S4_Speaker_Bracket_Adaptor.stl

STL

402.9 KB

B5_S4_Speaker_Bracket_Adaptor_Seal.stl

STL

417.6 KB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

2 model files

Recommended kit

50g

Based on 25% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg PETG / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
B5_S4_Speaker_Bracket_Adaptor.stl	Mount / bracket	402.9 KB STL	Slice file	Slice file	Slice file	Ensure proper orientation in the slicer for optimal printing
B5_S4_Speaker_Bracket_Adaptor_Seal.stl	Mount / bracket	417.6 KB STL	Slice file	Slice file	Slice file	Ensure proper orientation in the slicer for optimal printing

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Accessories

Audi B5 S4 Front Speaker Bracket / Adapter

0 downloads187 views0 likes

Shared by

Michael Chen

Verified

Description

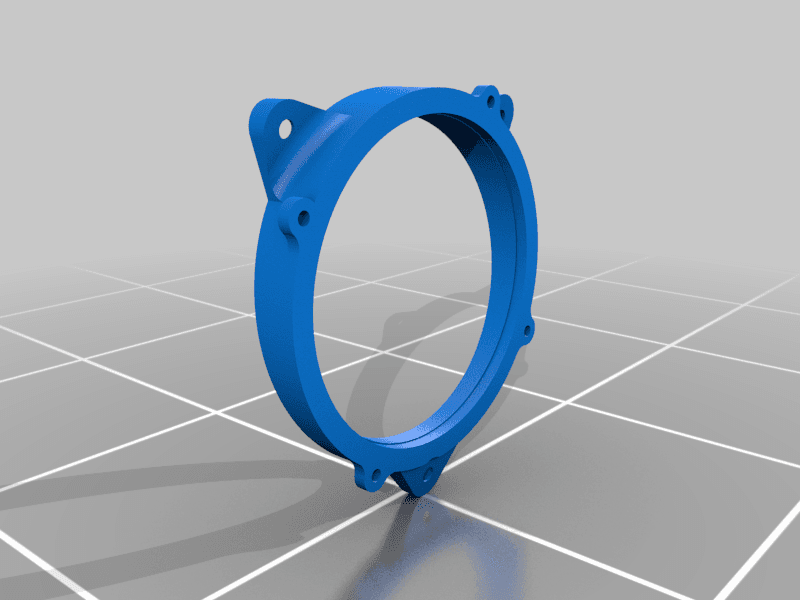

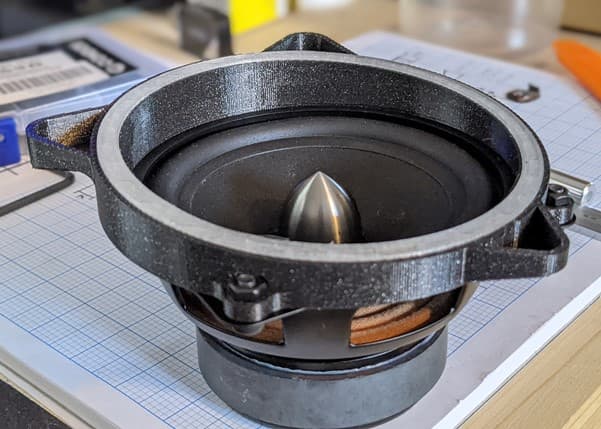

This bracket was designed for a friends Audi B5 S4 Bose door speakers, this is for the front left door mounted speaker (mirror the model for the right side). The adapter allows a replacement speaker with a standard mounting method to be fitted. I do not know if this would fit a normal A4 or one without the Bose Speakers. I also do not know if there were any regional differences. The stock speakers use a propriety mounting system which wont take any standard size speakers. The speakers this was designed for can be seen here: The dimensions of the speaker fitment can be seen in the images. The groove in the face which touches the door card is designed for the TPU insert to prevent rattles, this could probably also just be filled with silicone or resin.

Print Settings

Time: 2h

Filament: 50g

Supports: Not needed

Compatible Cars

Audi (all models)

Published Mar 8, 2026Updated Jul 15, 2026

Originally published on thingiverse.com · License: CC BY
